  • SHIPPING IN EARLY NOVEMBER

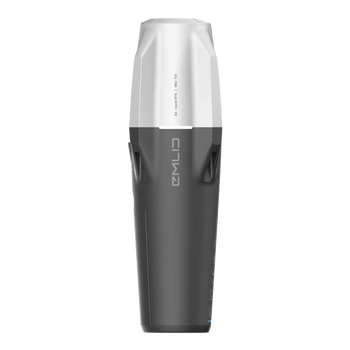

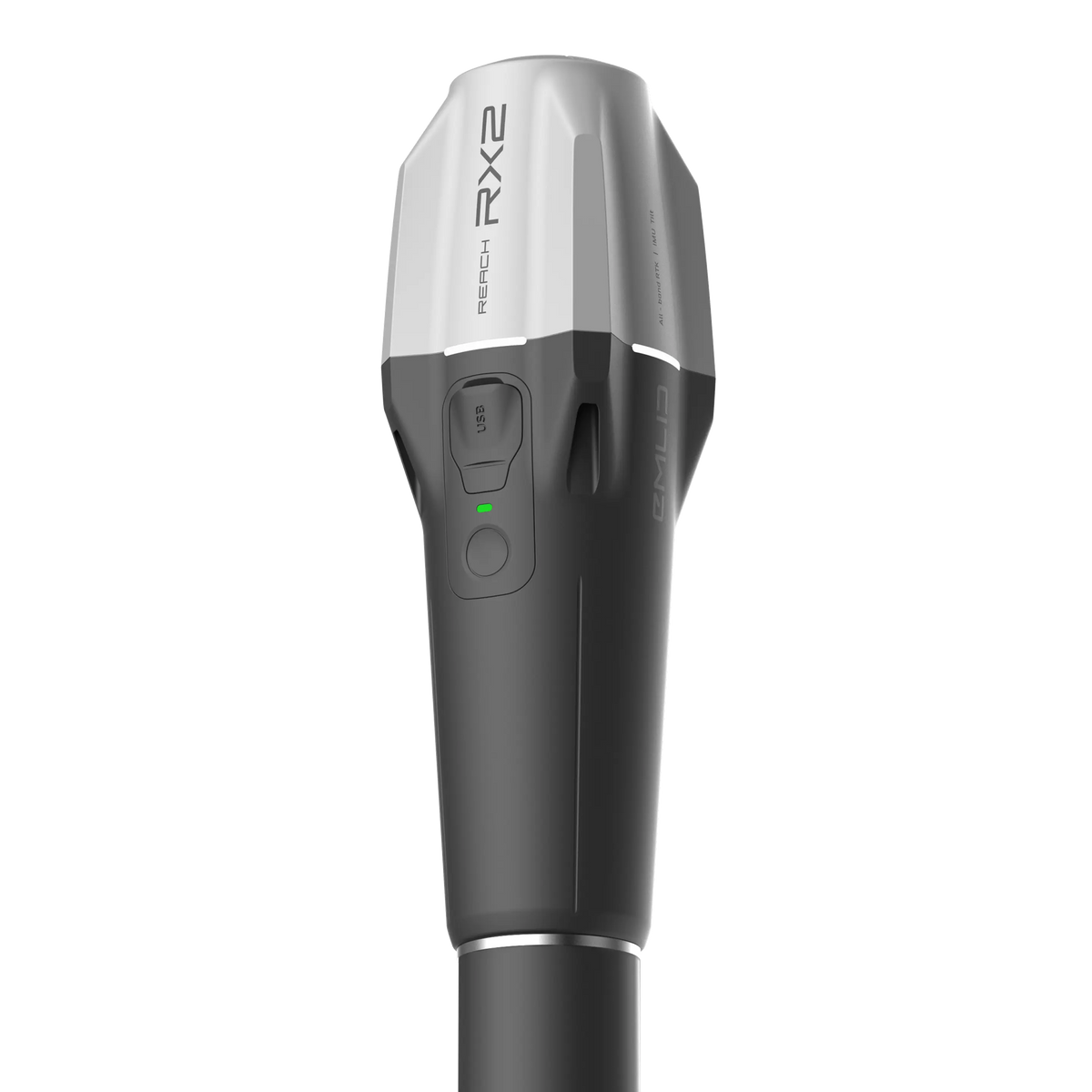

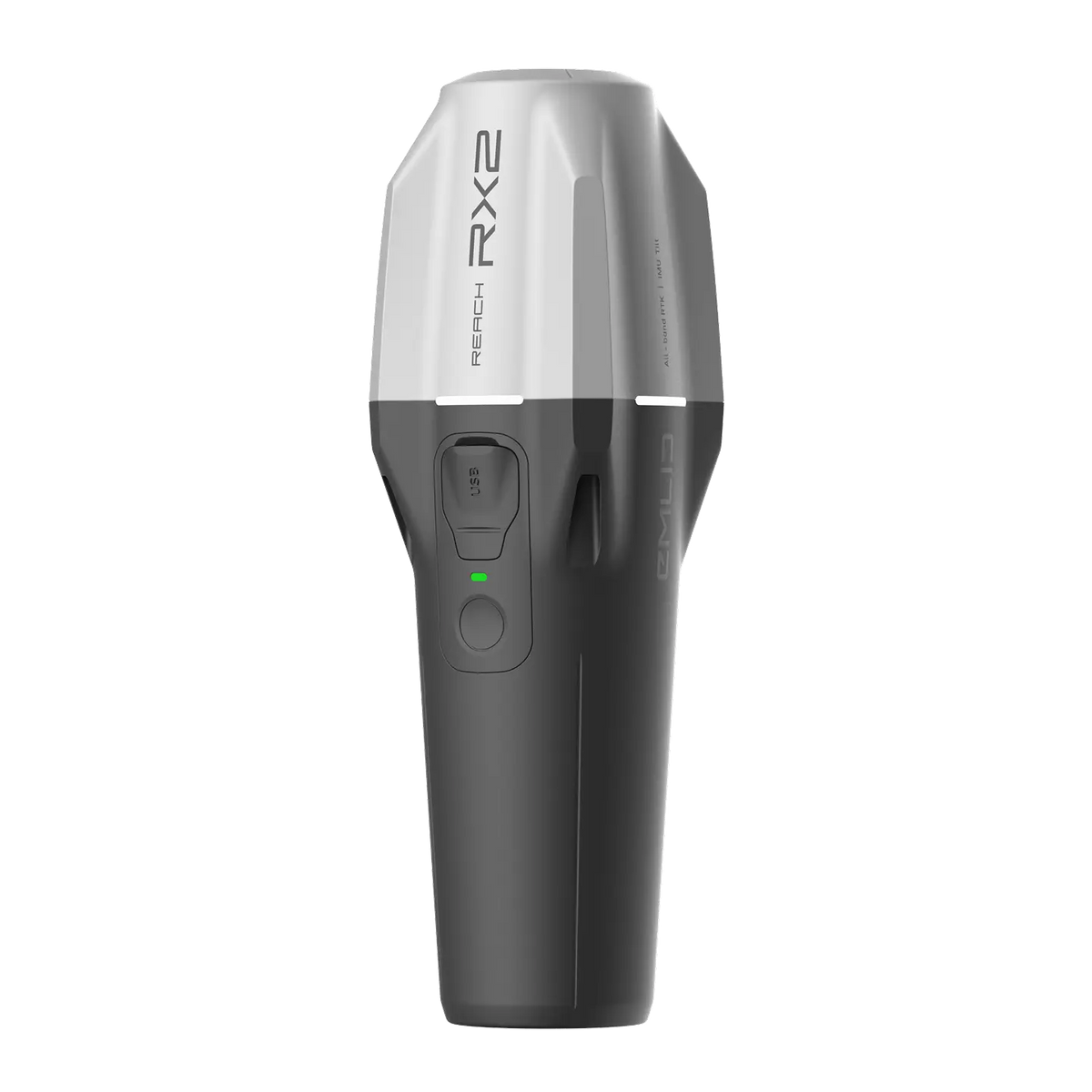

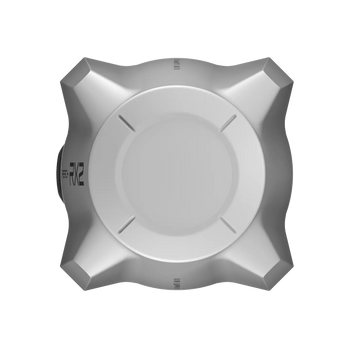

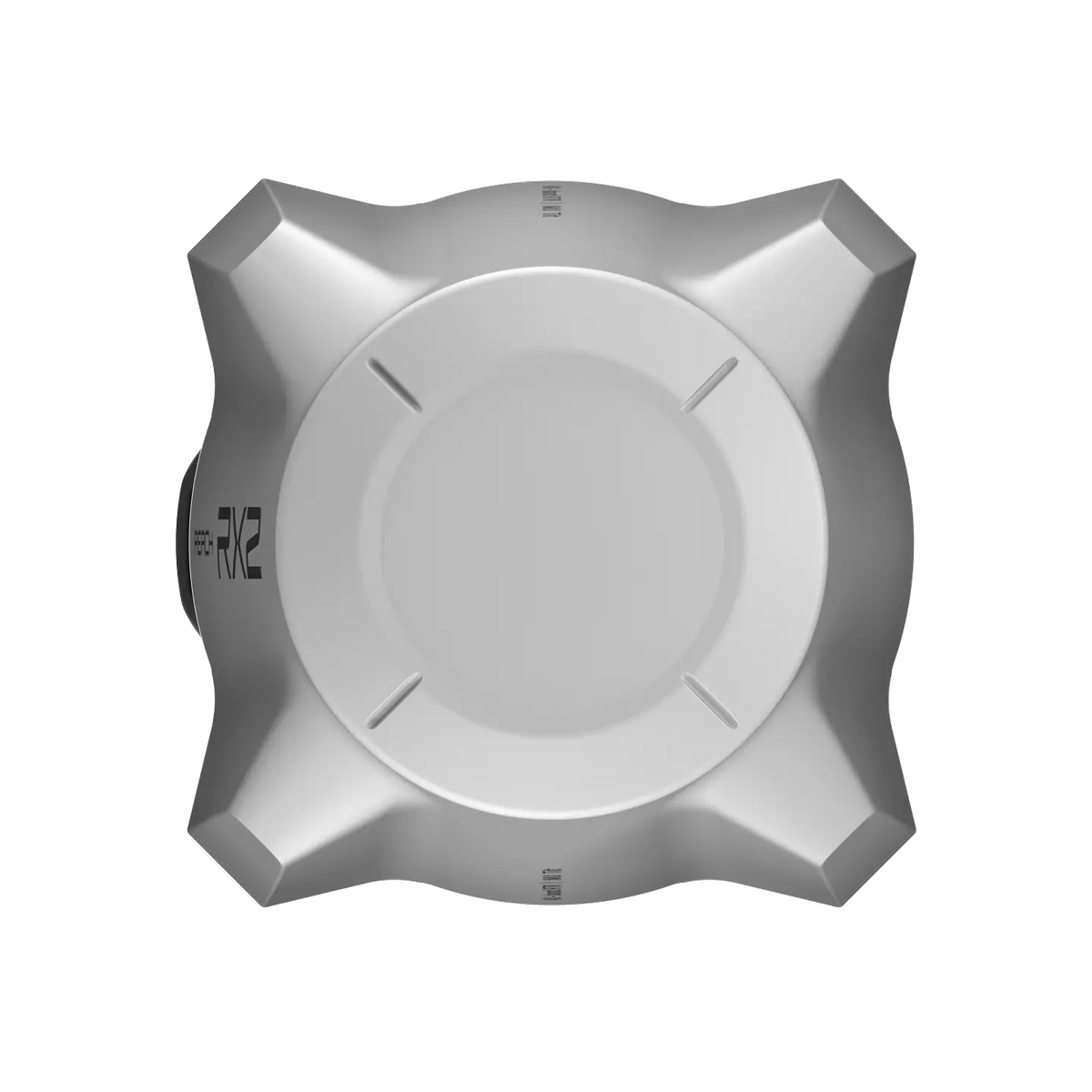

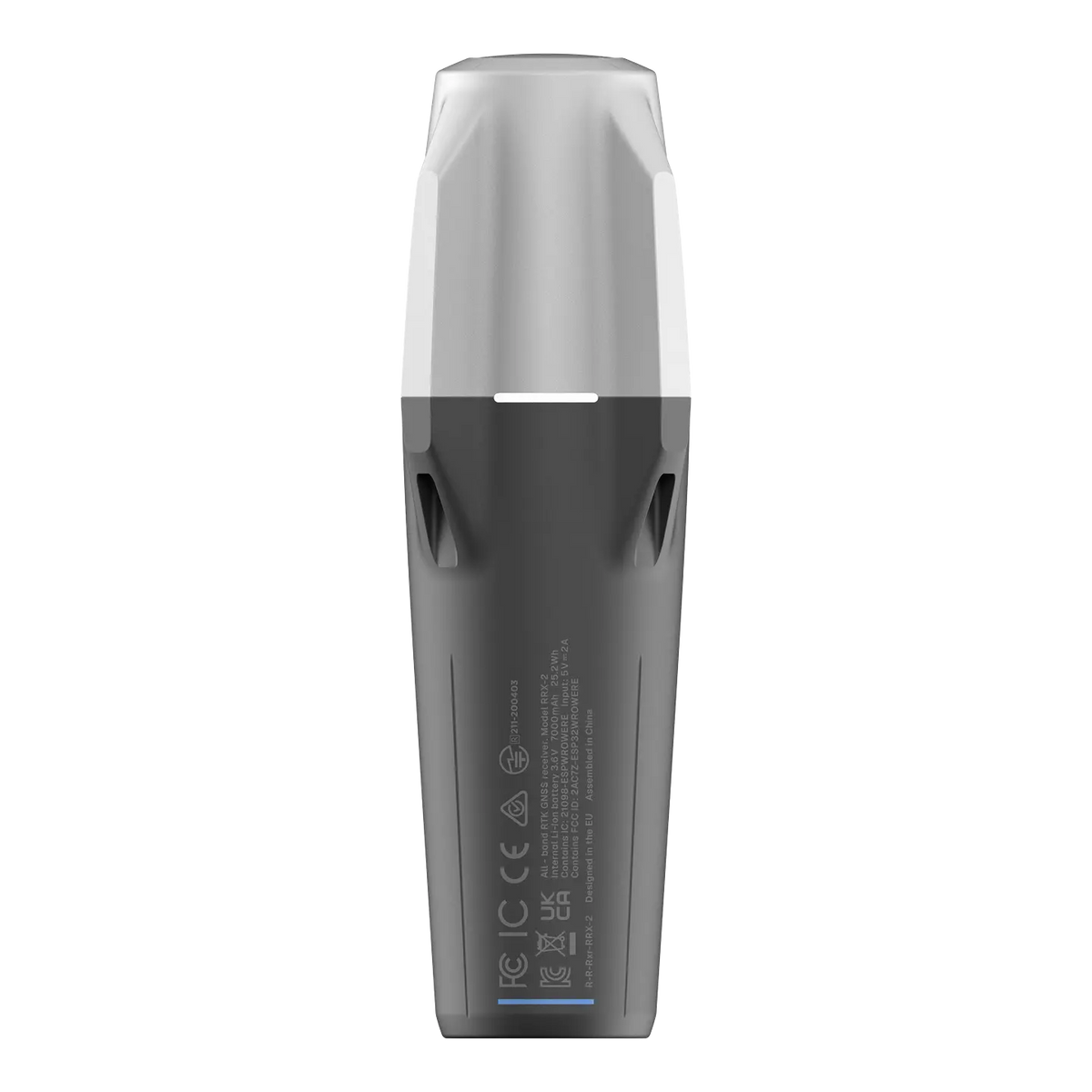

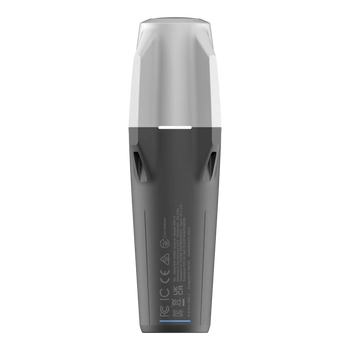

Reach RX2

$2,399 tax excl.

Free shipping from Chicago (2-7 days)

Often Bought Together

Quick Release Adapter

Quick Release Adapter

$139

+ ADD

Lightweight, all-band RTK GNSS receiver with tilt compensation

Designed specifically for use with NTRIP corrections.
Comes with a mobile app.

Precision

RTK: 7 mm + 1 ppm
Tilt compensation: RTK: 2 mm + 0.3 mm/°

GNSS

GPS: L1C/A, L2C, L5
GLONASS: L1OF, L2OF
Galileo: E1-B/C, E5a and E6
BeiDou: B1I, B1C, B2a and B3I
QZSS: L1C/A, L1C/B11, L2C and L5
NavIC: L1-SPS data and L5-SPS

280 g

Compact and lightweight

16 hours on one charge

Li-ion battery with USB Type-C charging

MFi-certified

Seamlessly integrates with popular iOS and Android apps such as ArcGIS Field Maps, Survey123 and QField

Package includes

– Reach RX2
– USB Type-C cable

Pre-order today and get a free quick-release adapter!

Shipping from Chicago

2-7 days by FedEx or UPS

Emlid Reach RX2 comes with a free 1-year warranty. If you experience any issues, please contact us at support@emlid.com, providing your order number.

Specifications

Specifications

  • Mechanical

    Dimensions: 172 x 51 x 51 mm (6.77 x 2.00 x 2.00 in)

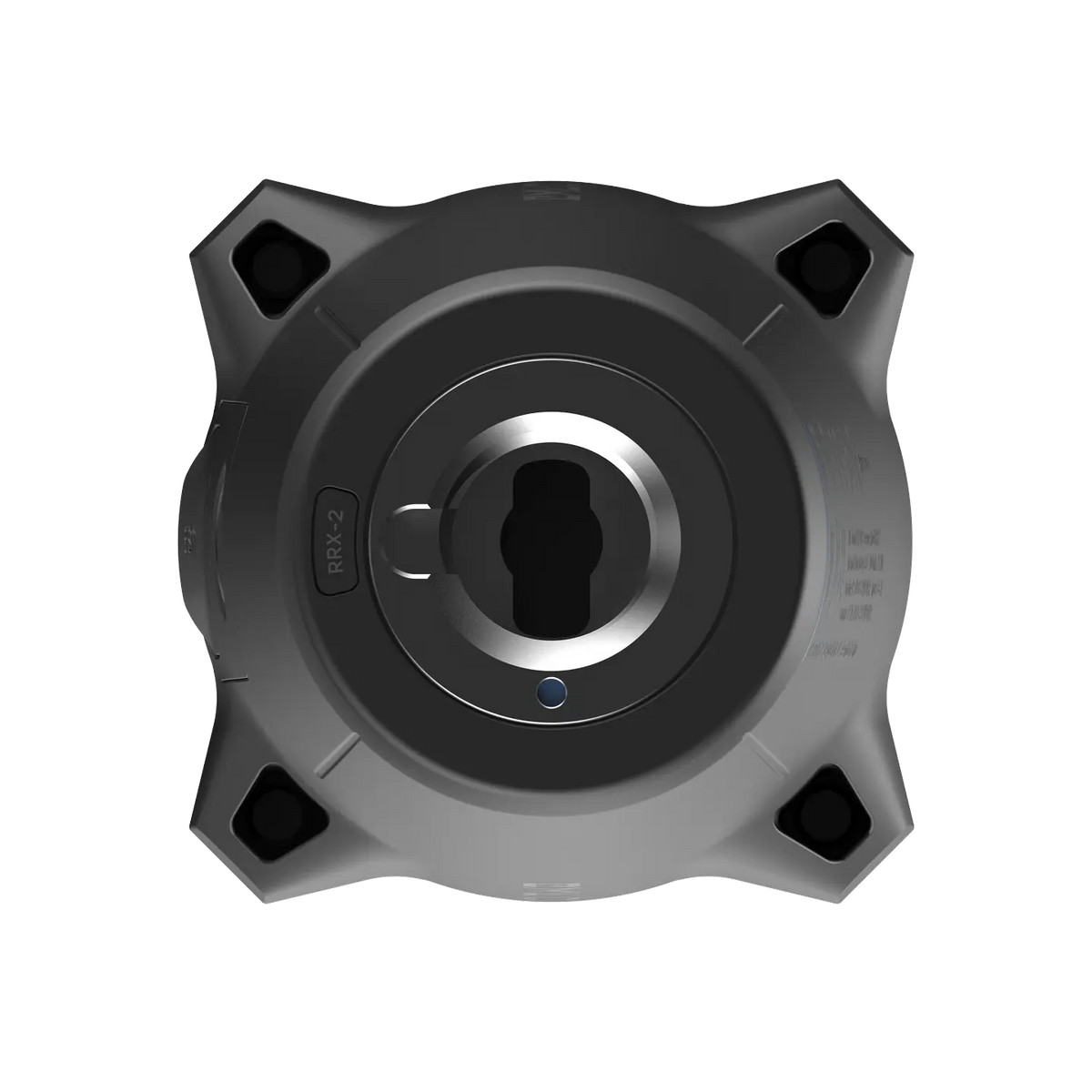

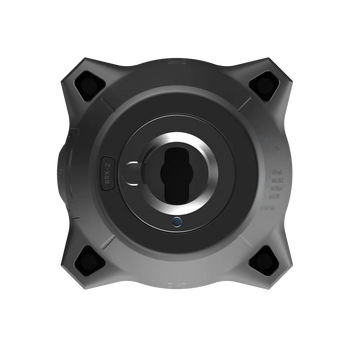

    Mount: 5/8”-11 UNC and quick release

    Weight: 280 g (0.62 lb)

    Operating tº: -20 to +65 °C (-4 to 149 °F)

    Ingress protection: IP68 (maximum depth of 1.5 meters up to 30 minutes)

  • Electrical

    Autonomy: Up to 16 hrs

    Battery: Li-Ion 7000 mAh, 3.6 V, 25.2 Wh

    Charging: USB Type-C 5 V 2 A

    Certification: FCC, CE, IC, MFi

  • Positioning

    RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm

    Tilt: RTK + 2 mm + 0.3 mm/°

    Convergence time: ~5 s typically

  • Connectivity

    Communication interface: Bluetooth 4.2 (BR/EDR + LE)

    Ports: USB Type-C port

  • Data

    Input data format: RTCM3

    Input data protocol: NTRIP

    Position data format: NMEA

  • GNSS

    Signal tracked: GPS: L1C/A, L2C, L5
    GLONASS: L1OF, L2OF
    Galileo: E1-B/C, E5a, E6
    BeiDou: B1I, B1C, B2a, B3I
    QZSS: L1C/A, L1C/B11, L2C, L5
    NavIC: L1-SPS Data, L5-SPS

    Number of channels: 672

    Update rates: 5 Hz

Comes With Software for the Field and the Office

The Emlid Flow mobile app efficiently manages all field-related tasks, including receiver configuration, RINEX logging, data collection, and stakeout. In its web version—Emlid Flow 360—you can prepare and manage projects, and quickly export and share your data.

The basic features are available for free to all users. Upgrade your Emlid Flow and Flow 360 with a single subscription.

Tilt Compensation Base and rover setup
Coding Points, lines, and polygons
Inverse & Traverse WMS layers
DTM support Stakeout reports
CSV, DXF, SHP, and KML

FAQ

What's the accuracy of Emlid Reach RX2?

What is Reach RX2 best for?

Is Reach RX2 compatible with the NTRIP services in my region?

How does Reach RX2 perform in challenging conditions?

How long do batteries last?

Can Reach RX2 integrate with third-party GIS software?

Do you provide documentation and training?

How long is the warranty period, and what should I do if my unit stops working?
