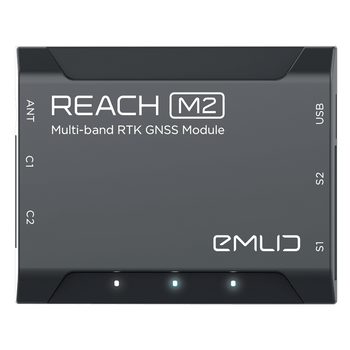

Reach M2
Multi-band RTK GNSS module for precise navigation and UAV mapping
GNSS
GPS/QZSS, GLONASS L1, L2;
BeiDou B1, B2; Galileo E1, E5
BeiDou B1, B2; Galileo E1, E5
Long range radio
External LoRa radio module: 868/915 MHz, range up to 8 km. Sold separately.
Package includes
– Reach M2
– Micro-USB cable
– JST-GH 6-pin to jumper pin cable
– JST-GH 5-pin to jumper pin cable
Shipping from Chicago
2-7 days by FedEx or UPS
Specifications
Specification
| Dimensions: | 56.4 x 45.3 x 14.6 mm |
|---|---|
| Weight: | 35 g |
| Operating tº: | -20 to +65 ºC |
| Power supply voltage on USB or JST-GH connectors: | 4.75 - 5.5 V |
|---|---|
| Antenna DC bias: | 3.3 V |
| Typical current consumption @5V: | 300 mA |
| Static horizontal: | 4 mm + 0.5 ppm |
|---|---|
| Static vertical: | 8 mm +1 ppm |
| Kinematic horizontal: | 7 mm + 1 ppm |
| Kinematic vertical: | 14 mm + 1 ppm |
| LoRa radio (sold separately) | |
|---|---|
| Frequency range: | 868/915 MHz |
| Distance: | Up to 8 km |
| Wi-Fi: | 802.11b/g/n |
| Bluetooth: | 4.0/2.1 EDR |
| Ports: | USB, UART, Event |
| Corrections: | NTRIP, RTCM3 |
|---|---|
| Position output: | NMEA, LLH/XYZ |
| Data logging: | RINEX, NMEA, LLH/XYZ, UBX |
| Internal storage: | 16 GB |
| Signal tracked: | GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C, E5b |
|---|---|
| Number of channels: | 184 |
| Update rates: | 10 Hz GNSS |
