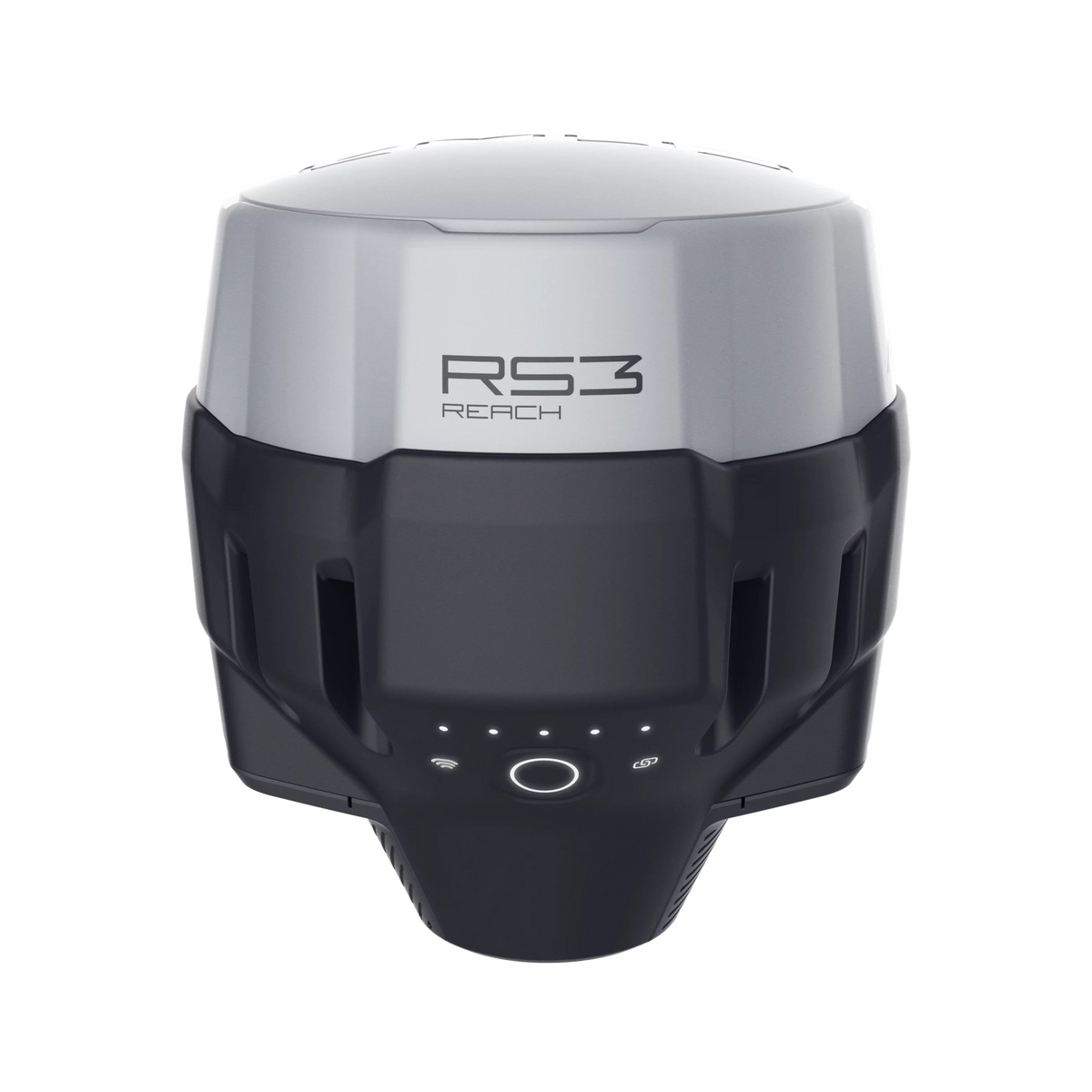

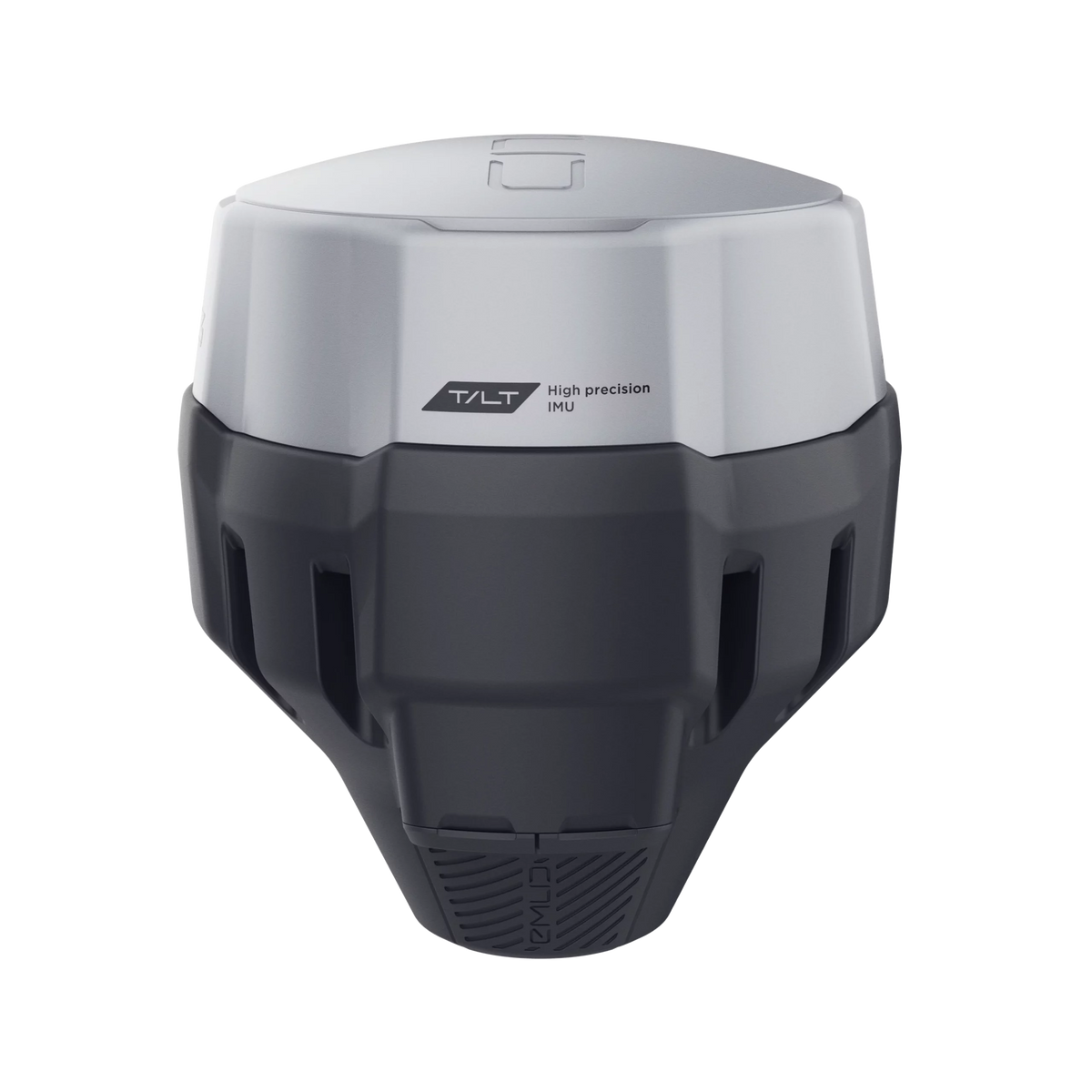

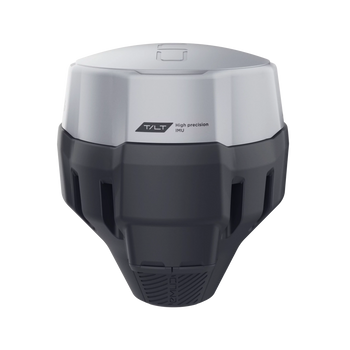

Reach RS3 Survey Kit

$5,598 tax excl.

Description

Two Reach RS3 receivers to use as base and rover

Survey grade precision with tilt compensation. Comes with a mobile app.

IMU tilt compensation

6DOF, RTK + 2 mm + 0.3 mm/°
Calibration-free and immune to magnetic disturbances

GNSS

GPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I,
Galileo E1-B/C, E5b

18 hrs with tilt compensation

Li-Ion battery, USB Type-C charging

LTE and Wi-Fi

To connect the device to the internet

Dual-band radio

868/915 MHz LoRa to receive and transmit corrections
450 MHz UHF to receive corrections from bases transmitting TRIMTALK 450S (trademark of Trimble Inc.)

NTRIP and RTCM3

Supported protocols to send and receive corrections


Explore all Reach RS3 features and user reviews

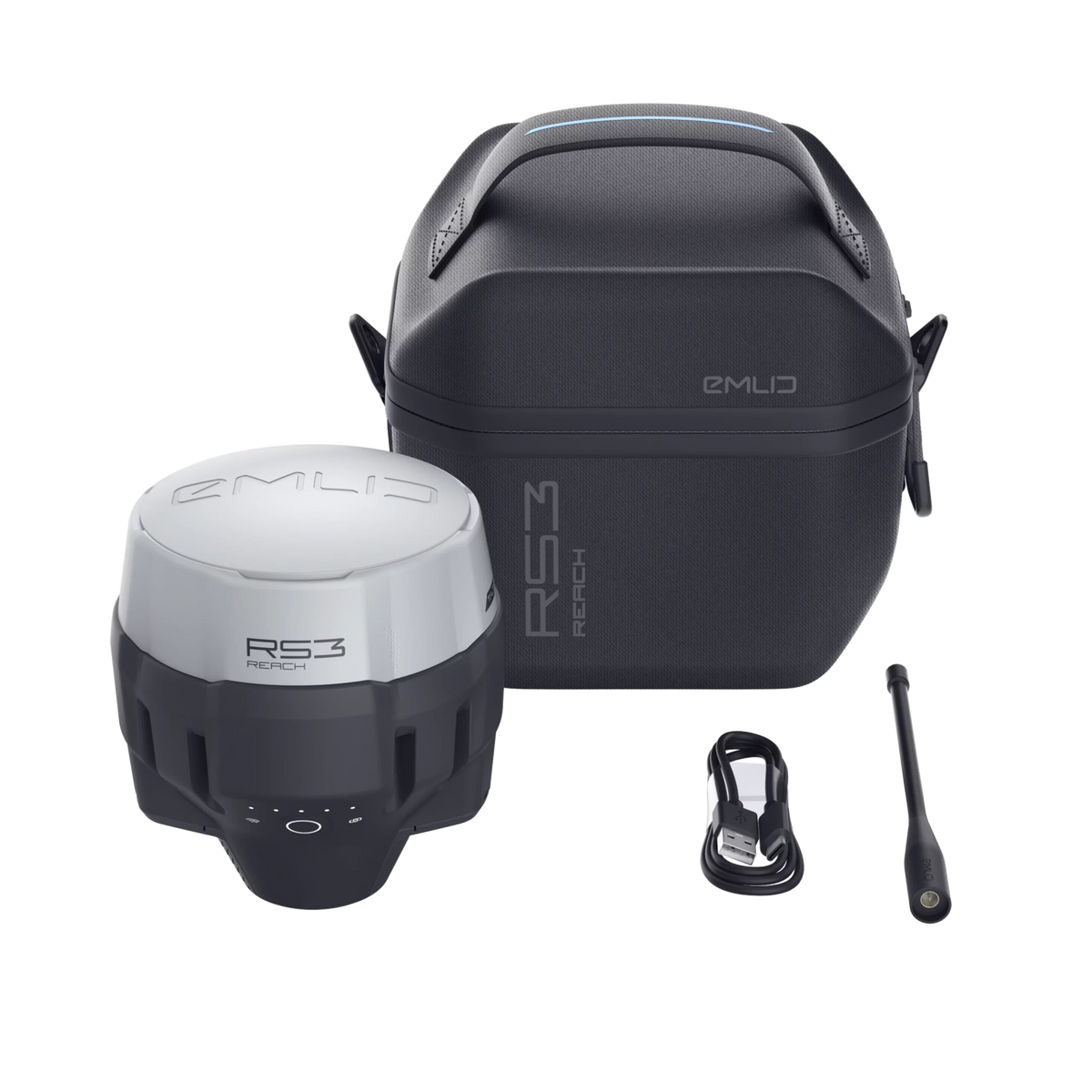

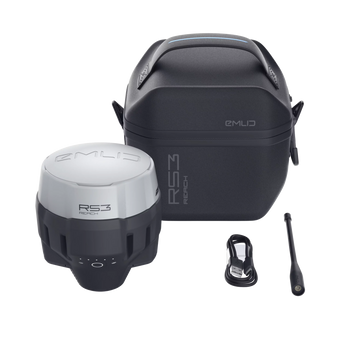

Package includes

– 2x Reach RS3

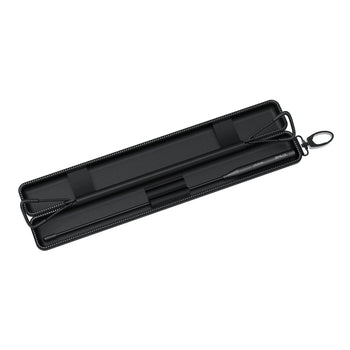

– 2x Carrying case with a strap

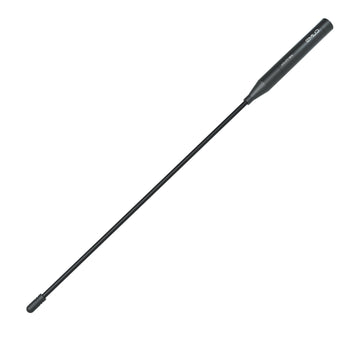

– 2x Radio antenna
– 2x USB Type-C cable

Shipping

Shipping from Chicago

2-3 days by USPS priority, 2 - 7 days
by FedEx or UPS

Specifications

Specification

  • Mechanical

    Dimensions: 126 x 126 x 142  mm

    Weight: 950 g

    Operating tº: -20 to +65 ºC

    Ingress protection: IP67

  • Electrical

    Autonomy: 18 hrs as RTK rover with tilt, 22 hrs of logging

    Battery: Li-Ion 5200 mAh, 7.2 V, 37.44 Wh

    External power input: 7.2 V

    Charging: USB Type-C 5 V, 3 A

    Certification: FCC, CE

  • Positioning

    Static: H: 4 mm + 0.5 ppm | V: 8 mm + 1 ppm

    PPK: H: 5 mm + 0.5 ppm | V: 10 mm + 1 ppm

    RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm

    Tilt compensation: RTK + 2 mm + 0.3 mm/°

    Convergence time: ~5 s typically

  • Connectivity

    LoRa radio

    Frequency range: 868/915 MHz

    Power: 0.1 W

    Distance: Up to 8 km

    UHF radio—receive only*

    Frequency range: 410 - 470 MHz

    Protocols: TRIMTALK 450S**

    Modulation type: GMSK

    LTE modem

    Regions: Global

    Bands: FDD-LTE: 1,2,3,4,5,7, 8, 12, 13, 18, 19, 20, 26, 28, 66 TD-LTE: 38,40,41
    UMTS (WCDMA/FDD): 1,3,2,4,5,6, 8,19 Quad-band, 850/1900, 900/1800 MHz

    SIM card: Nano-SIM

    Wi-Fi: 802.11 b/g/n

    Bluetooth: 4.0/2.1 EDR

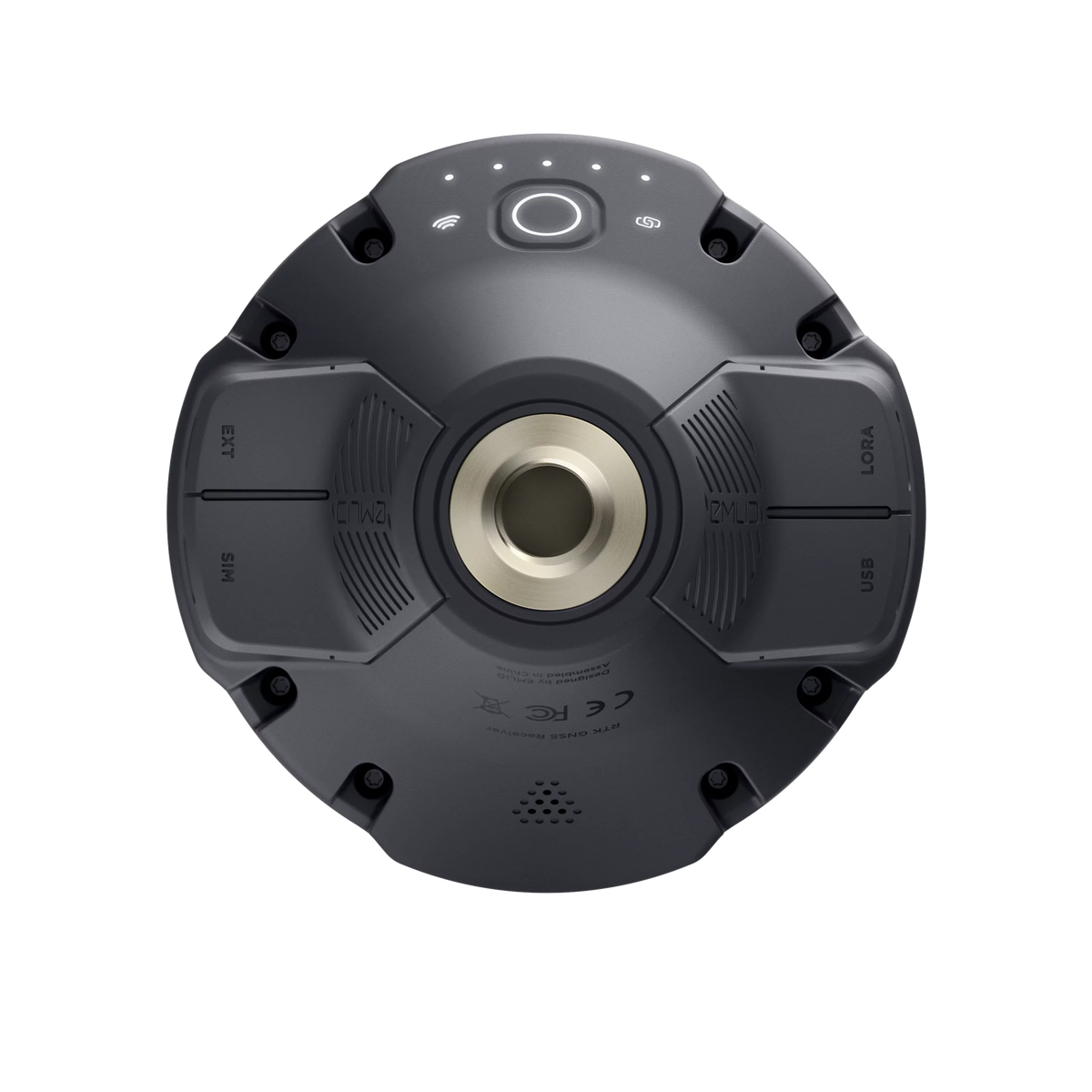

    Ports: RS-232, USB Type-C

    *Requires a 410-470 MHz antenna, sold separately.

    **TRIMTALK is a trademark of Trimble Inc.

  • Data protocols

    Corrections: NTRIP, RTCM3

    Position output: NMEA, LLH/XYZ

    Data logging: RINEX, NMEA, LLH/XYZ, UBX

    Internal storage: 16 GB

  • GNSS

    Signal tracked: GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C, E5b

    Number of channels: 184

    Update rates: up to 10 Hz

    IMU: 6DOF
