  • SHIPPING IN LATE DECEMBER

Emlid Base and Rover Kit

$8,870 tax excl.

Free shipping from Chicago (2-7 days)

Often Bought Together

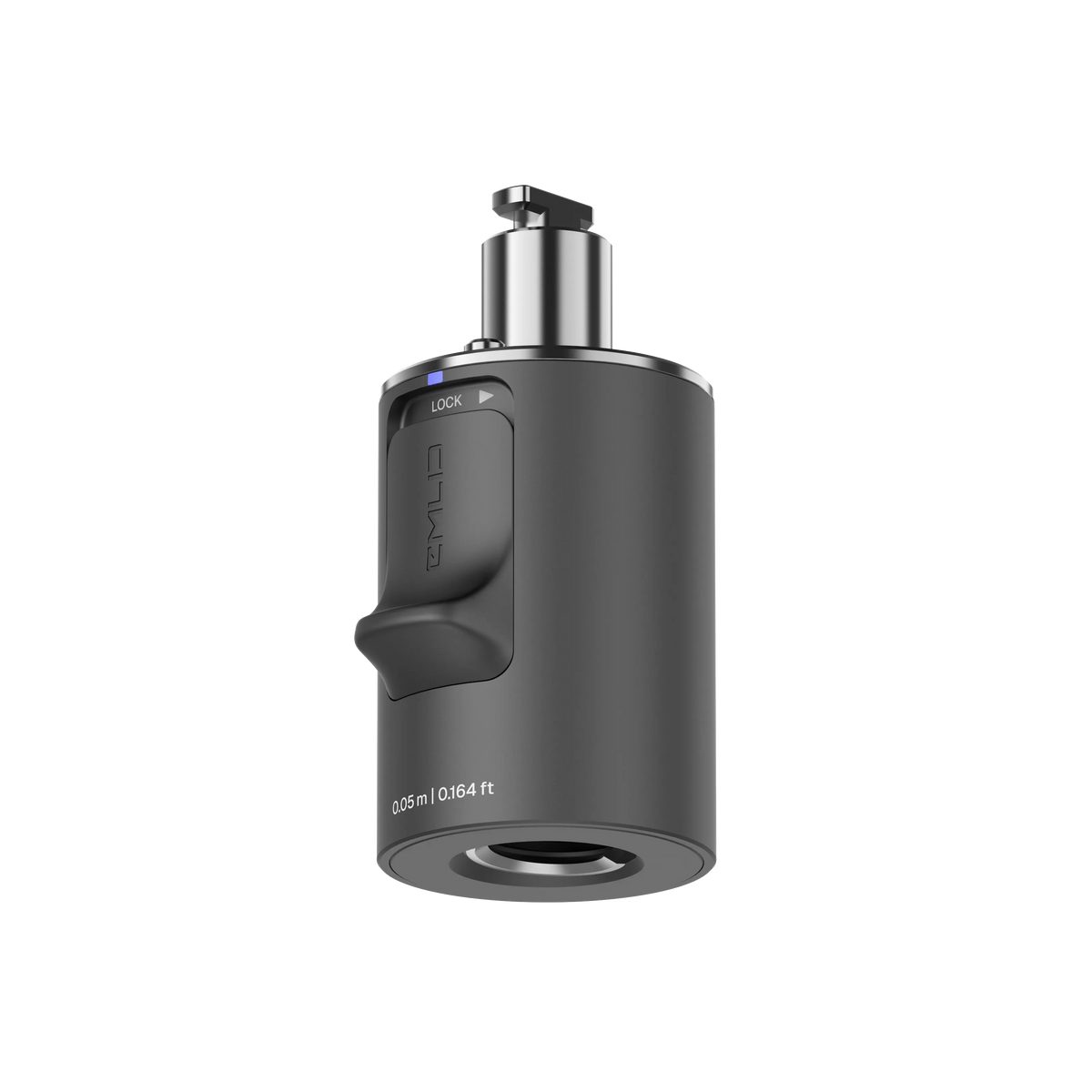

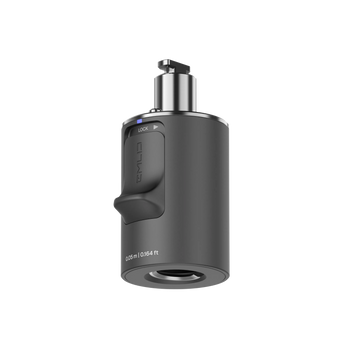

Quick Release Adapter

Quick Release Adapter

$139

+ ADD

Reach RS4 Pro and Reach RS4 to use as a base and a rover

Build a powerful RTK GNSS setup with this versatile kit. Use the RS4 as a fixed base station and pair it with the RS4 Pro — which is equipped with dual cameras — as your rover. Together, they provide accurate positioning and effortless stakeout, making them ideal for surveying, mapping and advanced fieldwork.

Two Full-HD cameras

AR guidance for stakeout Measurements from images

High precision

RTK: 7 mm + 1 ppm
Tilt compensation: RTK: 2 mm + 0.3 mm/°

All-band support

GPS: L1C/A, L2C, L5
GLONASS: L1OF, L2OF
Galileo: E1-B/C, E5a, E6
BeiDou: B1I, B1C, B2a, B3I
QZSS: L1C/A, L1C/B11, L2C, L5
NavIC: L1-SPS Data, L5-SPS

Base and rover

915 MHz LoRa 450 MHz UHF NTRIP

Rugged and powerful

16 hours on one charge Magnesium alloy body IP68 rating Withstands temperatures from -40 to +65°C (-40 to +149ºF)


Explore all Reach RS4 Pro features and user reviews

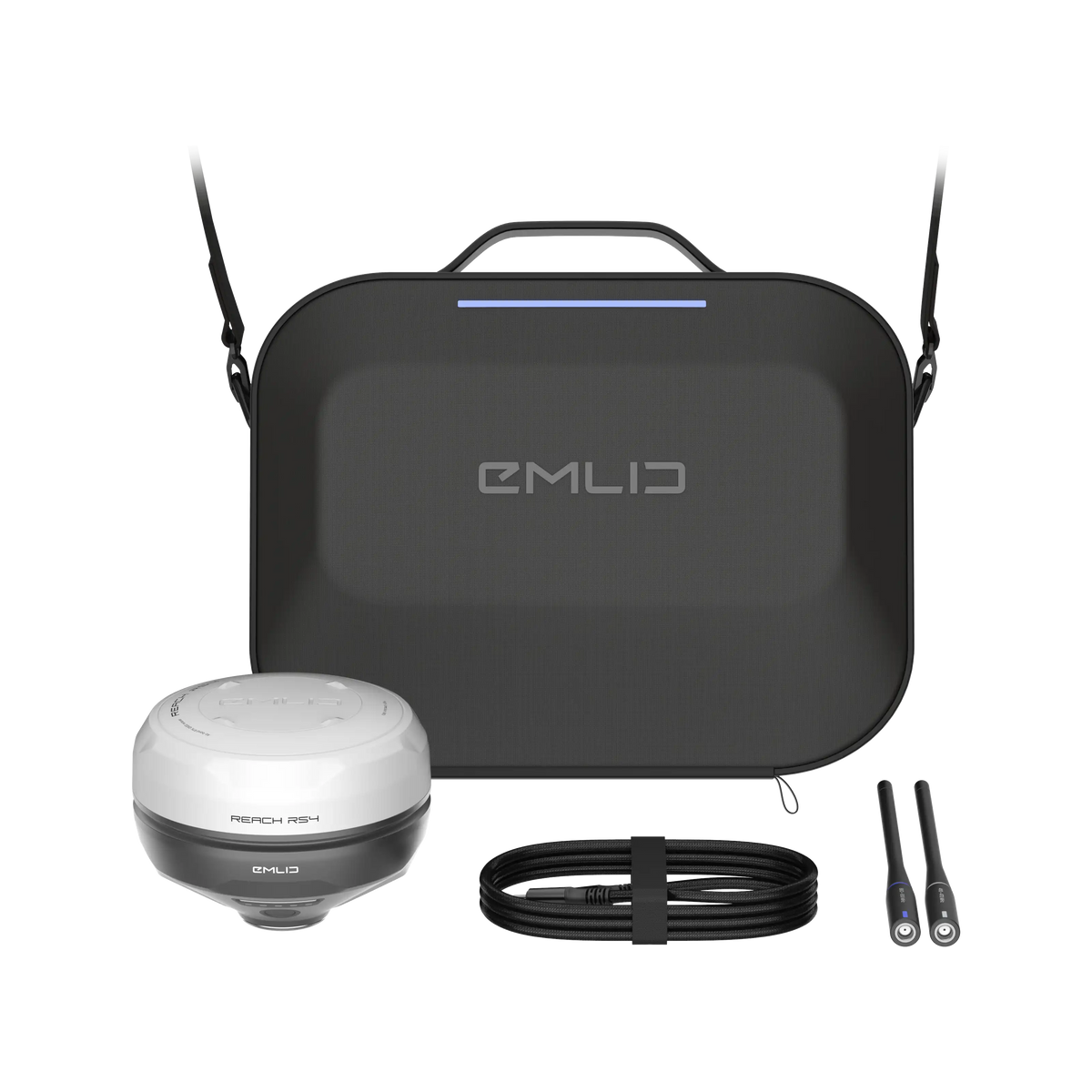

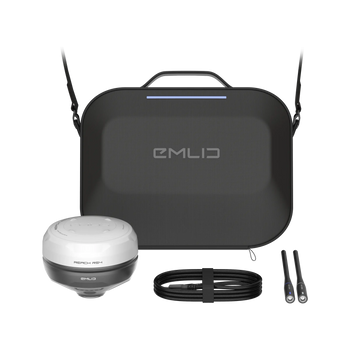

Package includes

- Reach RS4 Pro

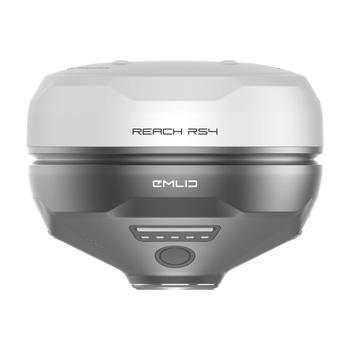

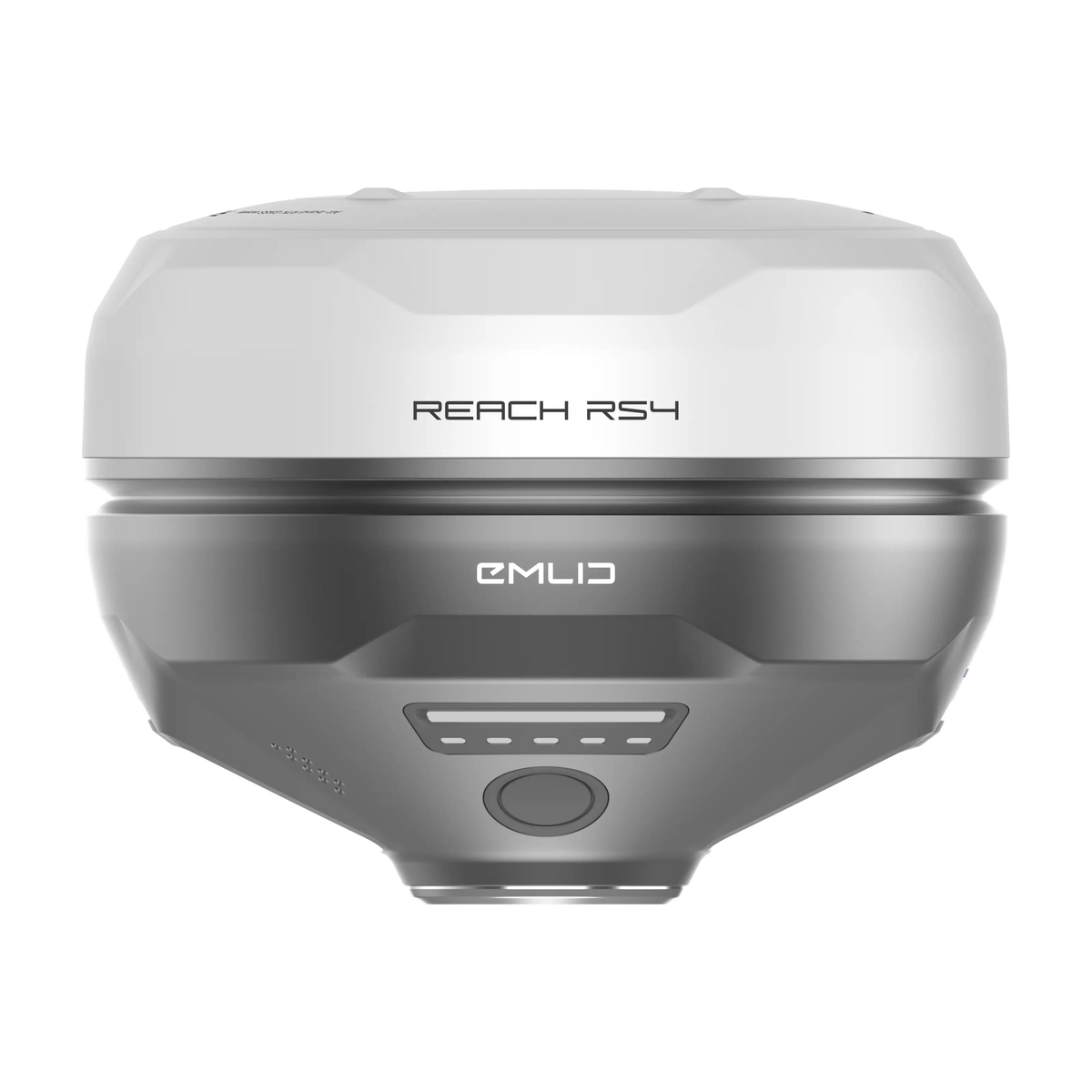

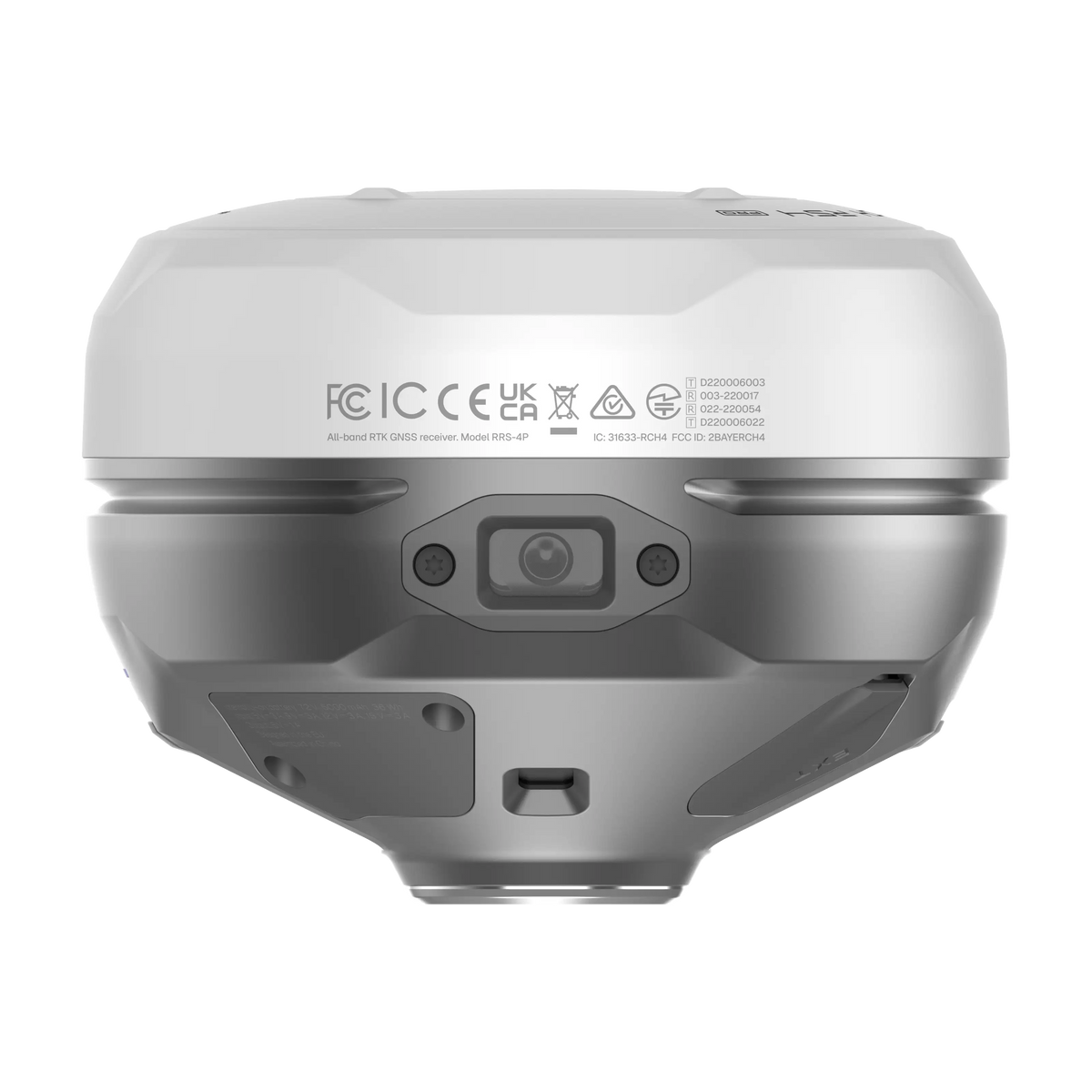

- Reach RS4
- 2x Carrying case
- 2x USB Type-C cable

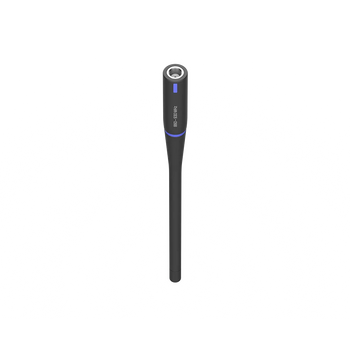

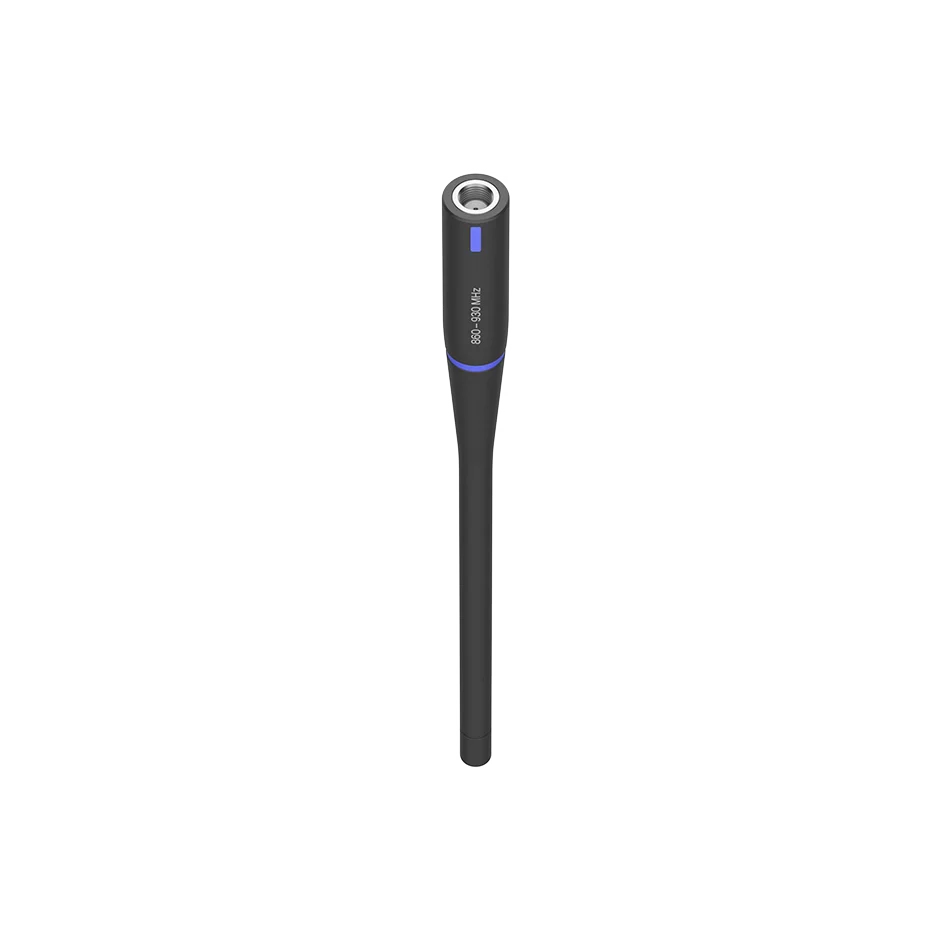

- 2x LoRa Antenna 860-930 MHz

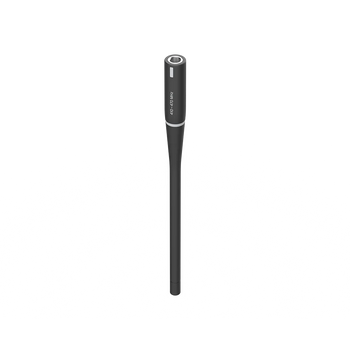

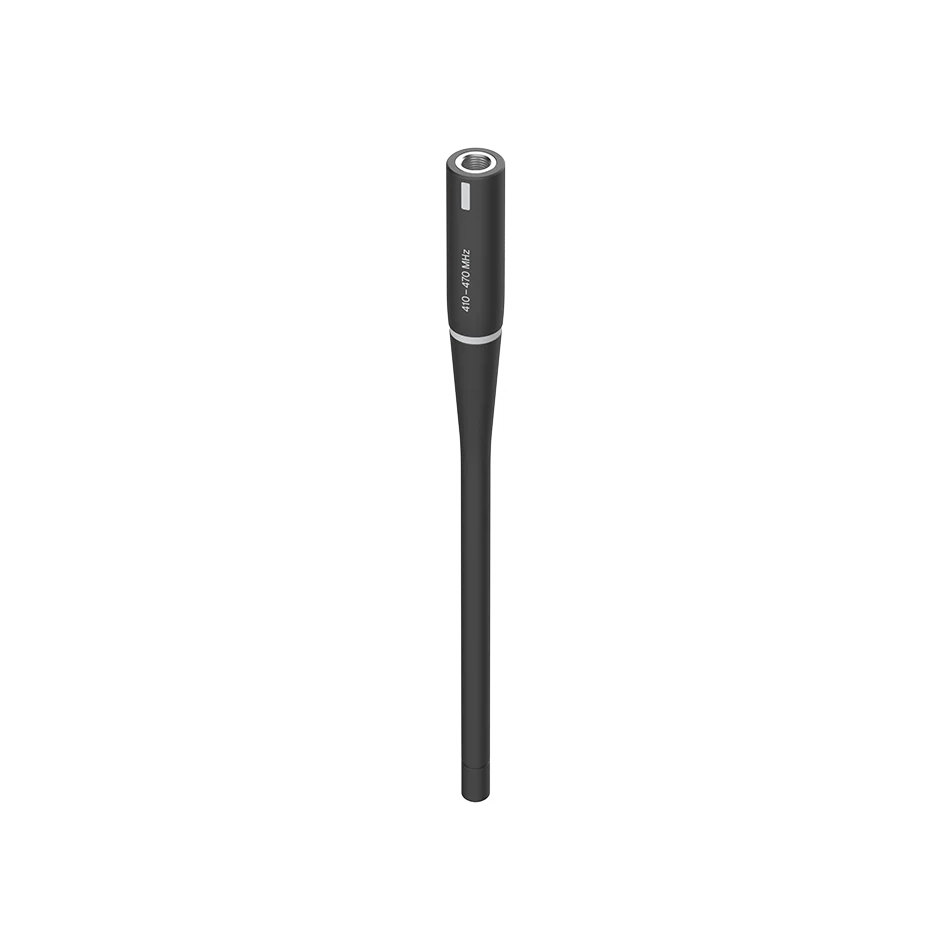

- 2x UHF Antenna 410-470 MHz
- 2x Quick release adapter
- Reach RS4 Bumper
- Reach RS4 Pro Bumper

Shipping from Chicago

2-7 days by FedEx or UPS

Specifications

Specification

  • Imaging

    Image sensors: 1/2.6 in, CMOS, global shutter, Full HD

    Field of view

    Front camera: H: 64.6°, V: 42.8°

    Bottom camera: H: 63°, V: 42°

    Video frame rate: 25 fps

  • Mechanical

    Dimensions: 128.6 x 128.6 x 99.3 mm

    Weight: 920 g (2.028 lb)

    Operating tº: -40 to +65 °C (-40 to 149 °F)

    Ingress protection: IP68

  • Electrical

    Autonomy: 16 hrs as RTK rover with tilt

    Battery: Li-Ion 5000 mAh, 7.2 V, 36 Wh

    Charging: USB Type-C (PD): 5V—3A, 9V—3A, 12V—3A, 15V—3A

  • Positioning

    Static: H: 4 mm + 0.5 ppm | V: 8 mm + 1 ppm

    PPK: H: 5 mm + 0.5 ppm | V: 10 mm + 1 ppm

    RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm

    Tilt compensation: RTK + 2 mm + 0.3 mm/°

    Convergence time: ~5 s typically

  • Data protocols

    Corrections: NTRIP, RTCM3

    Position output: NMEA, LLH/XYZ

    Data logging: RINEX, NMEA, LLH/XYZ, UBX

    Internal storage: 16 GB

  • GNSS

    Signal tracked: GPS: L1C/A, L2C, L5, GLONASS: L1OF, L2OF, Galileo: E1-B/C, E5a, E6, BeiDou: B1I, B1C, B2a, B3I, QZSS: L1C/A, L1C/B11, L2C, L5, NavIC: L1-SPS Data, L5-SPS

    Number of channels: 672

    Update rates: up to 10 Hz

  • Connectivity

    LoRa radio: up to 1W

    Frequency range: 868/915 MHz

    Power: 0.1 W

    Distance: Up to 8 km

    UHF radio: up to 2W

    Frequency range: 410 - 470 MHz

    Protocols: TRIMTALK 450S**

    Modulation type: GMSK

    LTE modem

    Regions: Global

    Bands: FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28 TD-LTE: 38, 39, 40, 41 UMTS (UHPS/FDD): 1, 2, 5, 8 Quad-band, 850/1900, 900/1800 MHz

    SIM card: Nano-SIM

    Wi-Fi: 802.11 b/g/n

    Bluetooth: Bluetooth 5.1 (BR/EDR + LE)

    Ports: RS-232, USB Type-C

    *Use the correct antenna, LoRa or UHF, for your setup.

    **TRIMTALK is a trademark of Trimble Inc.

Which Receiver Is Right for You?

EmptyCell
Image 1

Reach RS4 Pro

Image 2

Reach RS4

Image 3

Reach RX2

Correction

technique

RTK with precision
H: 7 mm + 1 ppm
V: 14 mm + 1 ppm


PPK with precision
H: 5 mm + 0.5 ppm
V: IO mm + 1 ppm

RTK with precision
H: 7 mm + 1 ppm
V: 14 mm + 1 ppm


PPK with precision
H: 5 mm + 0.5 ppm
V: 10 mm + 1 ppm

RTK with precision
H: 7 mm + 1 ppm
V: 14 mm +1 ppm

Tilt compensation

RTK + 2mm + 0.3mm/°

RTK + 2 mm + 0.3 mm/°

RTK + 2 mm + 0.3 mm/°

Camera

✔︎

X

X

Base mode

✔︎

✔︎

X

Data logging

✔︎

✔︎

X

Connectivity

LoRa / UHF / NTRIP

LoRa / UHF / NTRIP

NTRIP via Bluetooth from
a smartphone/tablet

Battery life

16 hrs as RTK rover with
tilt, 22 hrs of logging

16 hrs as LTE RTK rover,
22 hrs of logging

16 hrs

Weight

920 g

920 g

280 g

Ingress protection

IP68

IP68

IP68 (maximum depth
of 1.5 meters up to 30
minutes)

Comes With Software for the Field and the Office

The Emlid Flow mobile app efficiently manages all field-related tasks, including receiver configuration, RINEX logging, data collection, and stakeout. In its web version—Emlid Flow 360—you can prepare and manage projects, and quickly export and share your data.

The basic features are available for free to all users. Upgrade your Emlid Flow and Flow 360 with a single subscription.

Tilt Compensation Base and rover setup
Coding Points, lines, and polygons
Inverse & Traverse WMS layers
DTM support Stakeout reports
CSV, DXF, SHP, and KML
