  • In stock

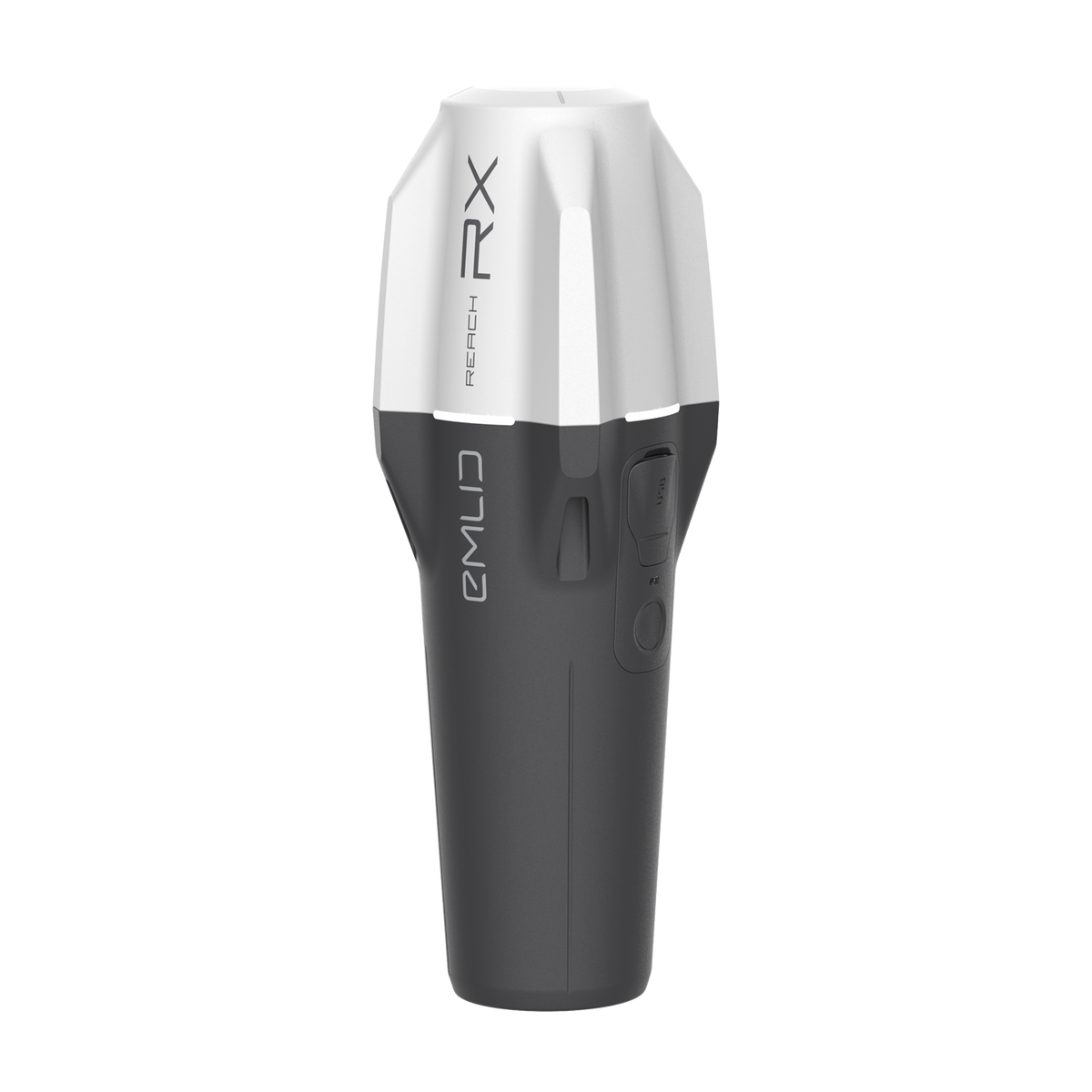

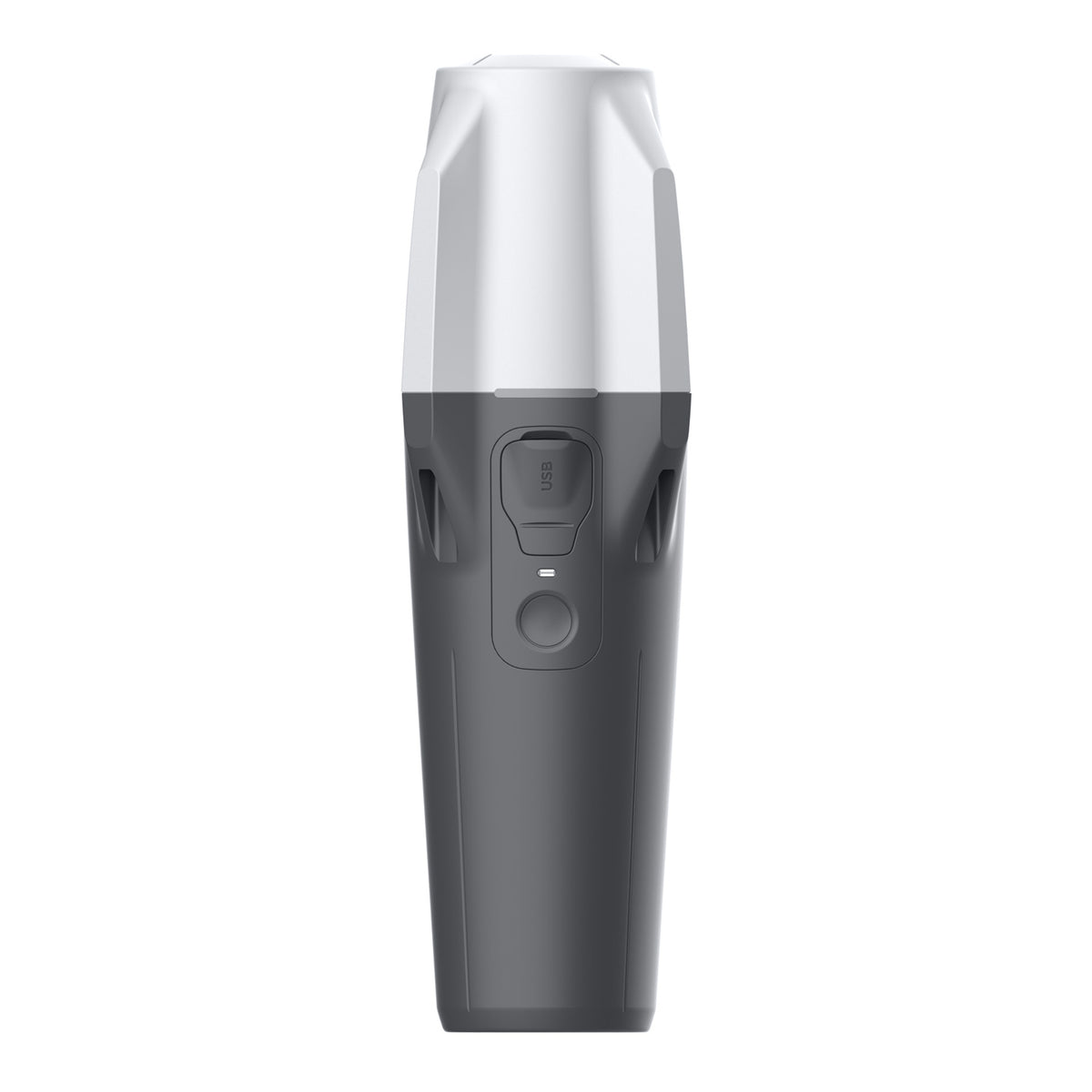

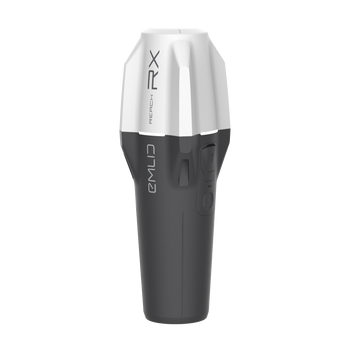

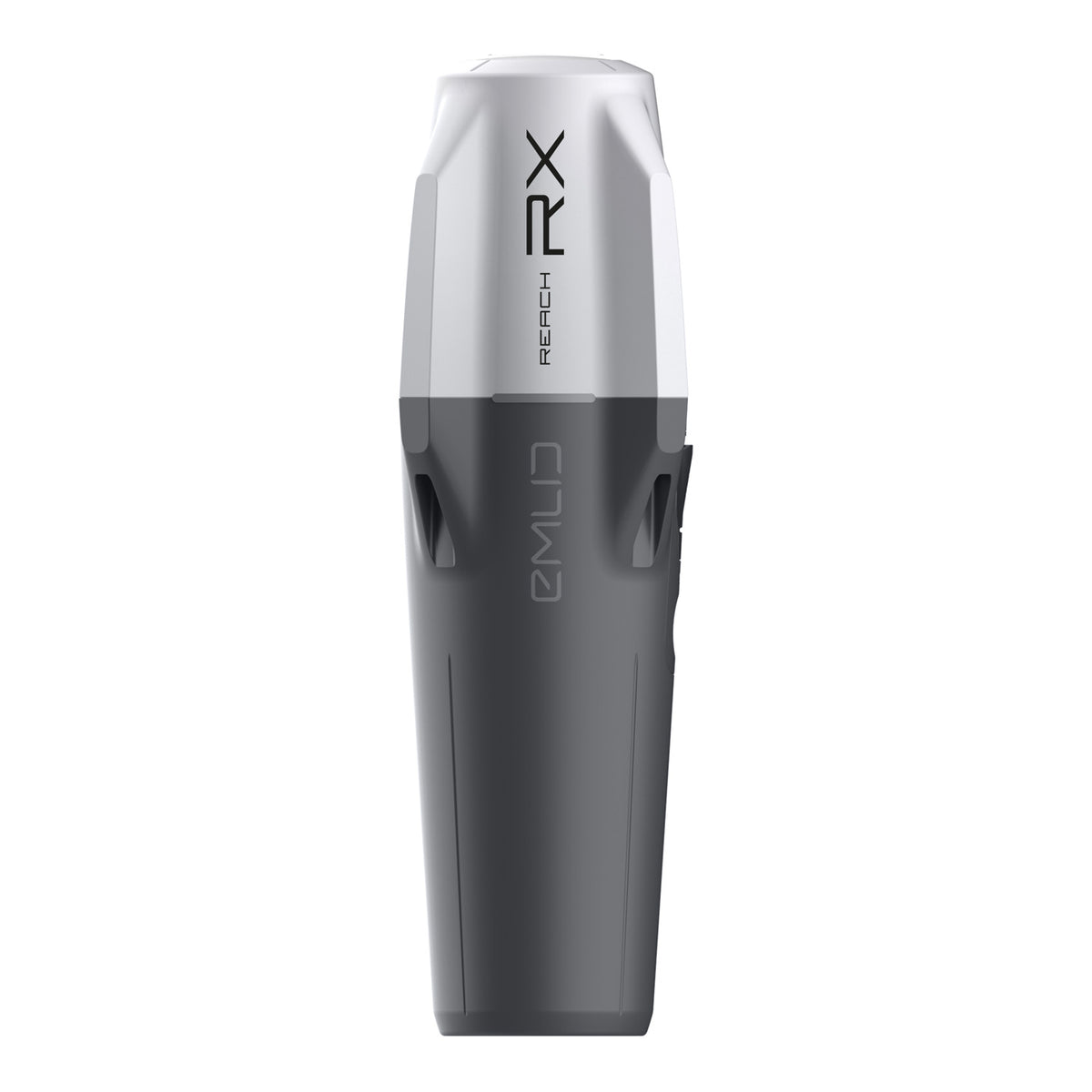

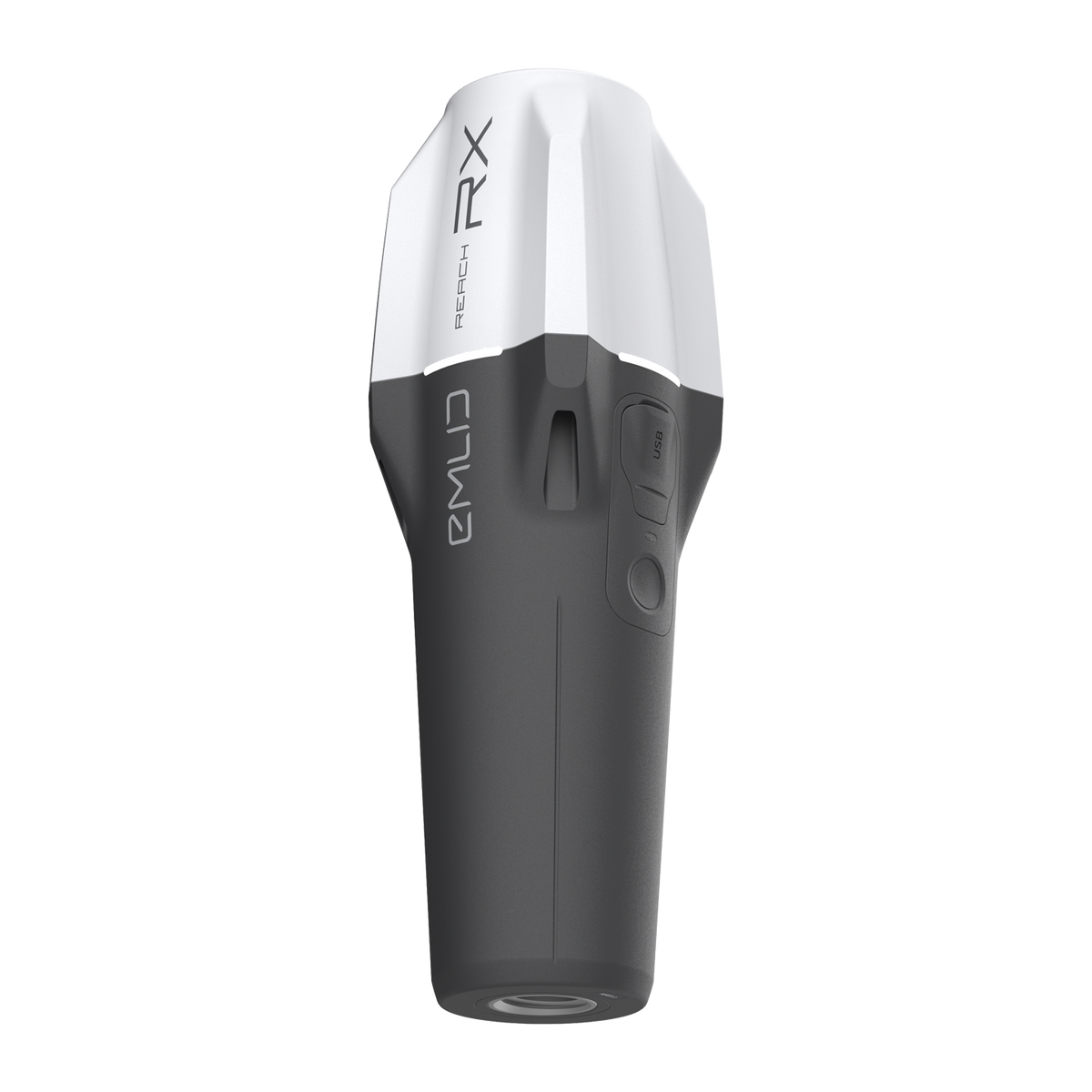

Reach RX

$1,999 tax excl.

Description

Lightweight and easy-to-use multi-band RTK GNSS receiver

Designed specifically for work with NTRIP corrections.
Comes with a mobile app.

GNSS

GPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I,
Galileo E1-B/C, E5b

250 g

Compact and lightweight

16 hrs

Li-Ion battery, USB Type-C charging

Communication interface

Bluetooth 4.2, MFi-certified

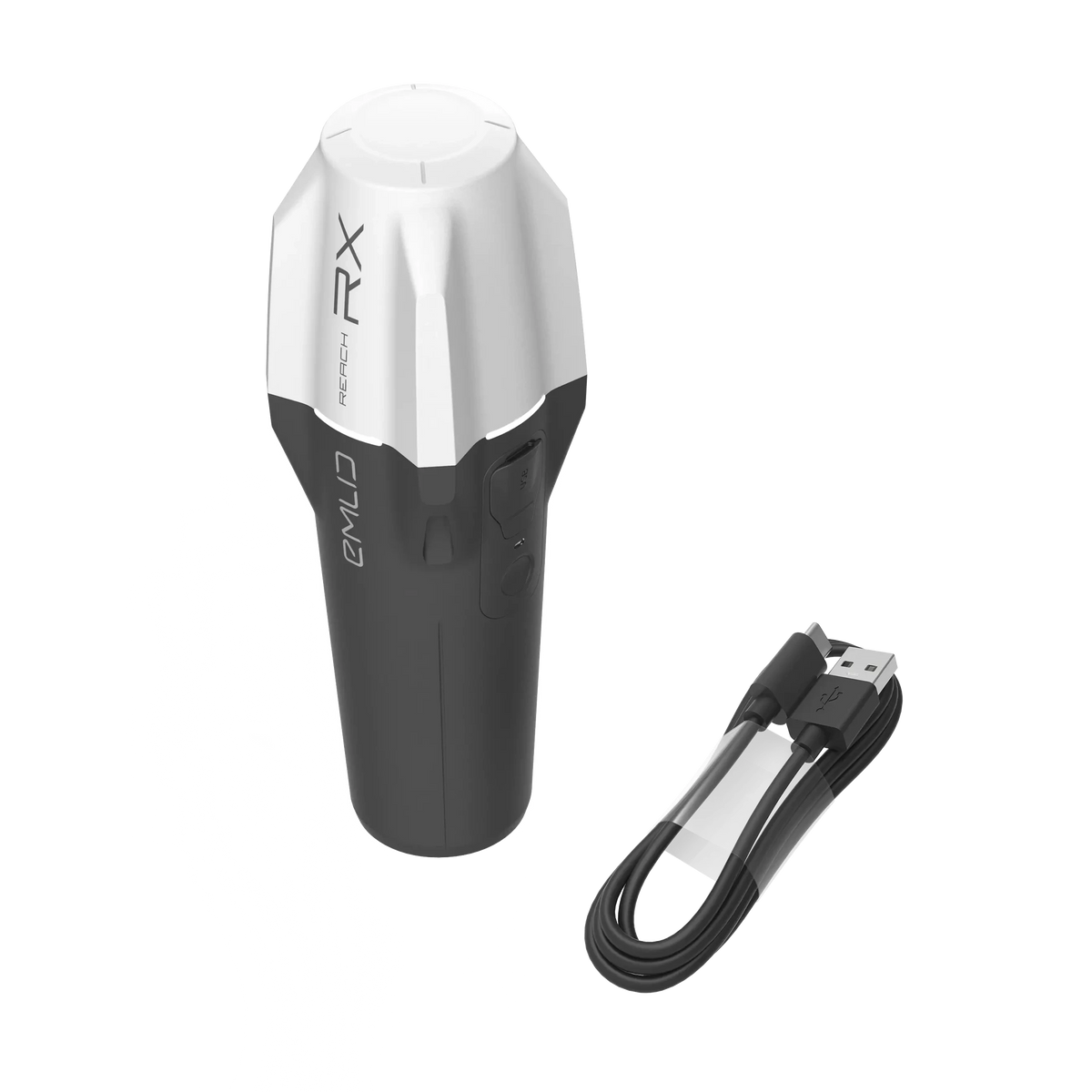

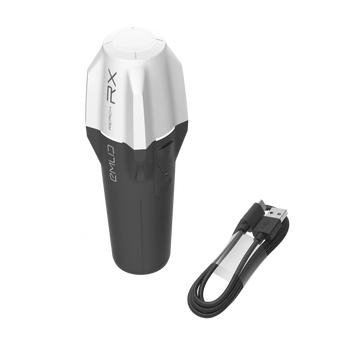

Package includes

– Reach RX
– USB Type-C cable

Shipping

Shipping from Chicago

2-3 days by USPS priority, 2 - 7 days
by FedEx or UPS

Specifications

Specification

  • Mechanical

    Dimensions: 172 x 51 x 51 mm

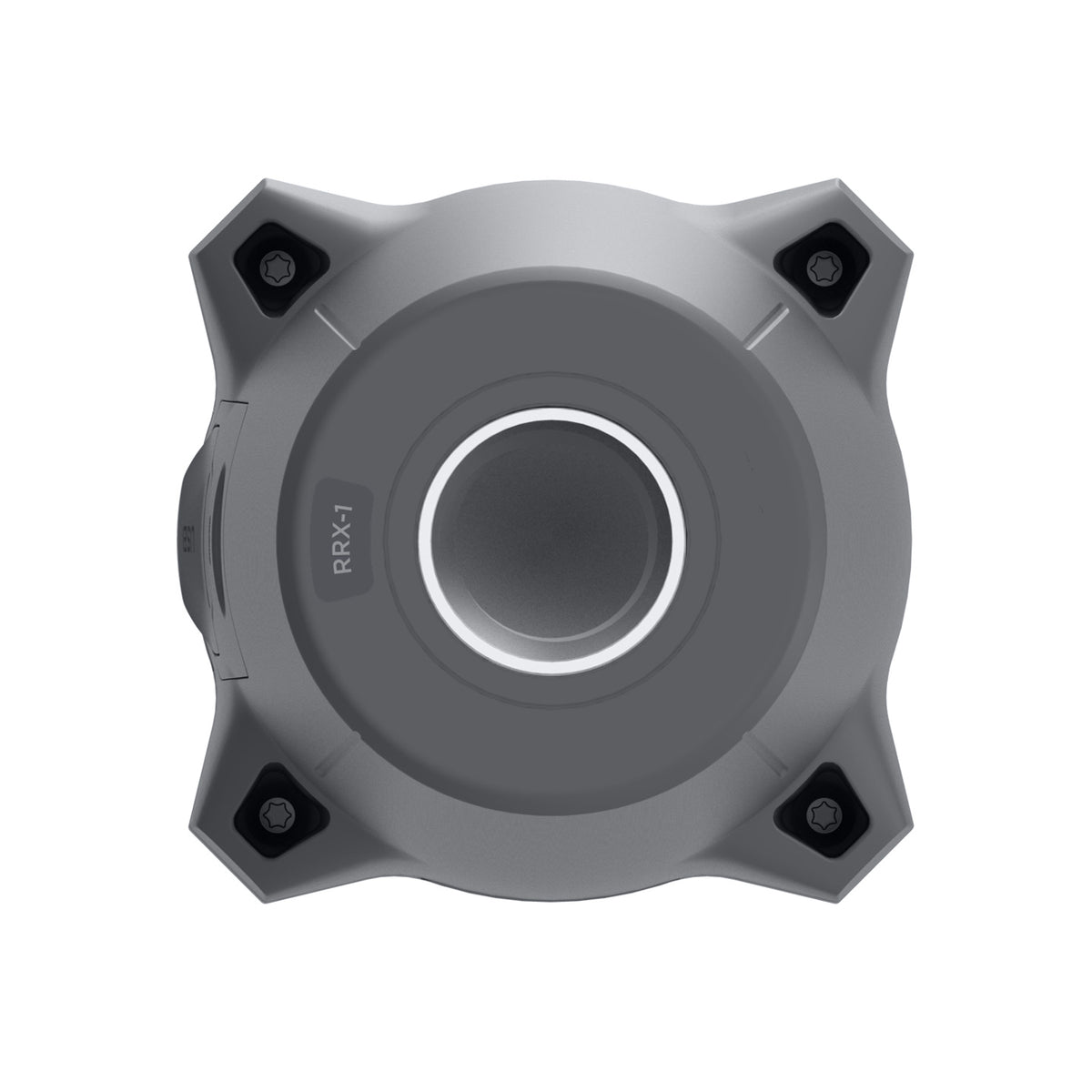

    Mount: 5/8”-11 UNC

    Weight: 250 g (8.81 oz)

    Operating tº: -20 to +65 ºC

    Ingress protection: IP68 (maximum depth of 1.5 meters up to 30 minutes)

  • Electrical

    Autonomy: Up to 16 hrs

    Battery: Li-Ion 5200 mAh, 3.6V, 18.72 Wh

    Charging: USB Type-C, 5V, 2A

    Certification: FCC, CE, IC

  • Positioning

    RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm

    Convergence time: ~5 s typically

  • Connectivity

    Communication interface: Bluetooth 4.2 (BR/EDR + LE)

    Ports: USB Type-C

  • Data

    Input data format: RTCM3

    Input data protocol: NTRIP

    Position data format: NMEA

  • GNSS

    Signal tracked: GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C, E5b

    Number of channels: 184

    Update rates: 5 Hz

Comes with software for the field and the office

The Emlid Flow mobile app efficiently manages all field-related tasks, including receiver configuration, RINEX logging, data collection, and stakeout. In its web version Emlid Flow 360, you can prepare and manage projects, quickly export and share your data.

The basic features are available for free to all users. Upgrade your Emlid Flow and Flow 360 with a single subscription.

Tilt Compensation Base and rover setup
Coding Points, lines, and polygons
Inverse & Traverse WMS layers
DTM support Stakeout reports
CSV, DXF, SHP, and KML

FAQ

What's the accuracy of Emlid Reach RX?

What is Reach RX best for?

Is Reach RX compatible with the NTRIP services in my region?

How does Reach RX perform in challenging conditions?

How long do batteries last?

Can Reach RX integrate with third-party GIS software?

Do you provide documentation and training?

How long is the warranty period, and what should I do if my unit stops working?
