Survey Pole with a smartphone mount

$299 (tax excl.)

The three-section construction delivers reliable stability with the help of solid flip locks. It comes equipped with a smartphone mount that fits most control devices and a carrying bag.

0.74 m

closed length

1.8 m

maximum height

900 g

total weight

Package includes

— 1 x Survey Pole
— 1 x Carrying bag

Available on backorder

Payment






Shipping from Hong Kong

2-5 days by DHL, up to 3 weeks by airpost

Import taxes are not included in the price

The final cost depends on the duties and taxes of destination country

Emlid Survey Pole

Survey Pole with a smartphone mount.
Get all the advantages of surveying with Emlid

  • 0.74 m folded

    Lightweight and compact construction at only 0.74 m in closed length is handy for field trips.

  • 1.8 m expanded

    The three-section construction easily
    extends to 1.8 m and delivers reliable
    stability with the help of solid flip locks.

  • 5/8″ thread

    The industry-standard 5/8″ thread provides compatibility with the majority of geodesic equipment.

  • Evenly distributed weight

    Lightweight and stable to bending. You can carry your pole with a receiver attached without worrying about dropping it.

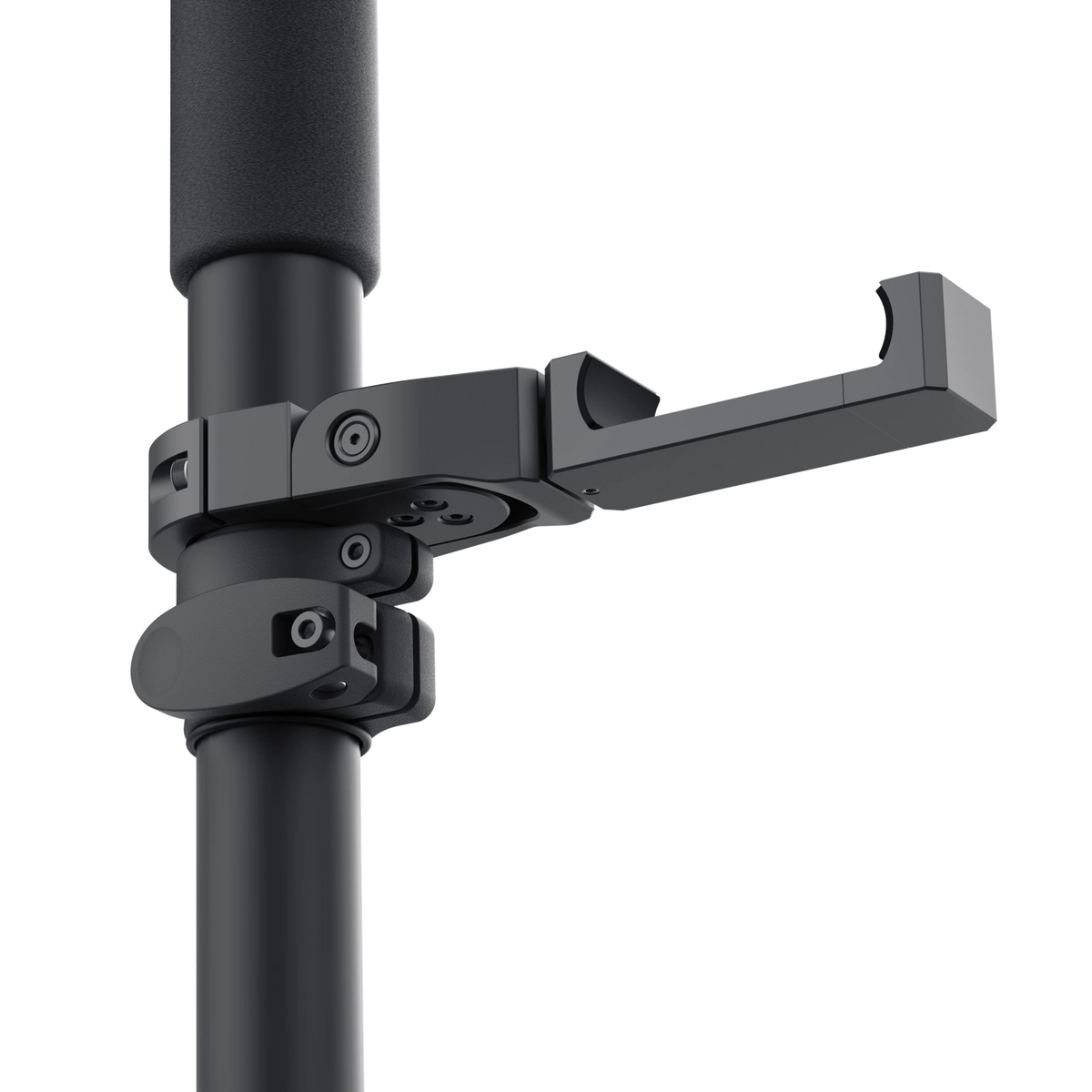

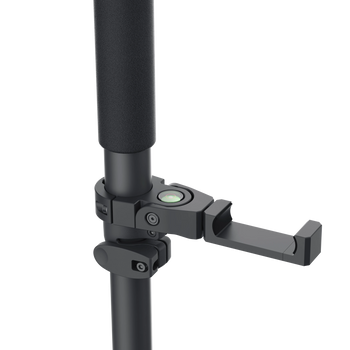

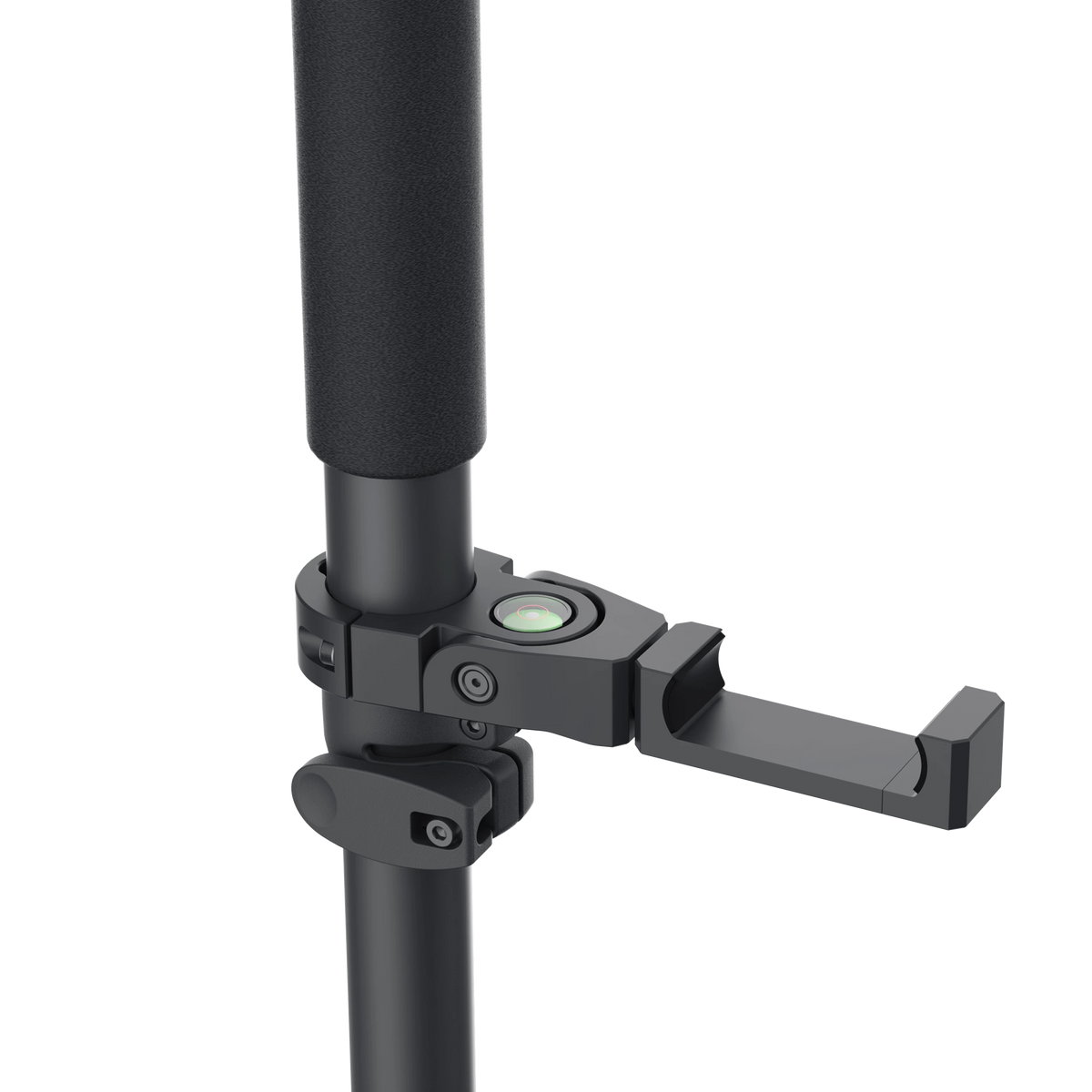

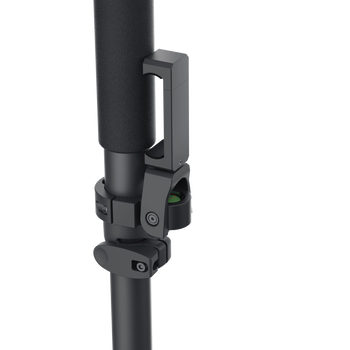

  • Phone mount

    The smartphone mount only needs to be set up on your survey pole once, as you don’t need to remove it. Just fold it when the work is completed and fit your survey pole into its carrying bag.

Emlid Survey Pole

Get started

  • Emlid Survey Pole Use

    1.
    Take out survey pole and a tip from the package

  • Emlid Survey Pole Use

    2.
    Using a 24 mm wrench, screw the tip to the survey pole in a clockwise direction up to the stop

    Apply LOCTITE® to the thread to prevent loosening from vibration and shock.

  • Emlid Survey Pole Use

    3.
    Fully extend and close the flip locks

    Make sure all the flip locks are closed. Watch your fingers when closing the flip locks.

  • Emlid Survey Pole Use

    4.
    Mount the receiver using the 5/8″ thread on the survey pole and carefully tighten it by hand up to the stop

    If it is necessary to replace the sharp end of the survey pole, use a 14 mm wrench.

set up device in survey pole
5.
Set up a smartphone mount

  1. Unfold the smartphone mount.
  2. Open the clamp arm and put your control device in the mount.
  3. Rotate the mount to the required position.

Make sure the control device is properly balanced in the mount.

Mechanical
  • Material Anodized aluminum
  • Maximum height 1.8 m
  • Closed length 0.74 m
  • Weight 0.9 kg (1.98 lb)
  • Thread 5/8-11 UNC
  • Operating tº -20 to +70°C (-4 to +158°F)
  • Maximum load 10 kg (22.05 lb)

Read before you use

To guarantee the safe operation of the survey pole, follow the precautions below:

  • Do not exceed the 10 kg maximum payload capacity of the survey pole.
  • Do not bend or stress the survey pole while extended - a bent survey pole will reduce the accuracy of the measurements.
  • Do not expose the survey pole to direct sunlight for a long time.
  • Keep the survey pole away from power supply sources and do not use it during a thunderstorm, as it may conduct electricity.
  • Be careful when handling the tip of the survey pole.
  • Watch your fingers when closing the flip locks and handling the control device holder.
  • After surveying in the rain, dry the flip locks with a clean, soft, lint-free cloth.
  • After surveying in dusty or sandy environments, clean the flip locks with compressed air.
