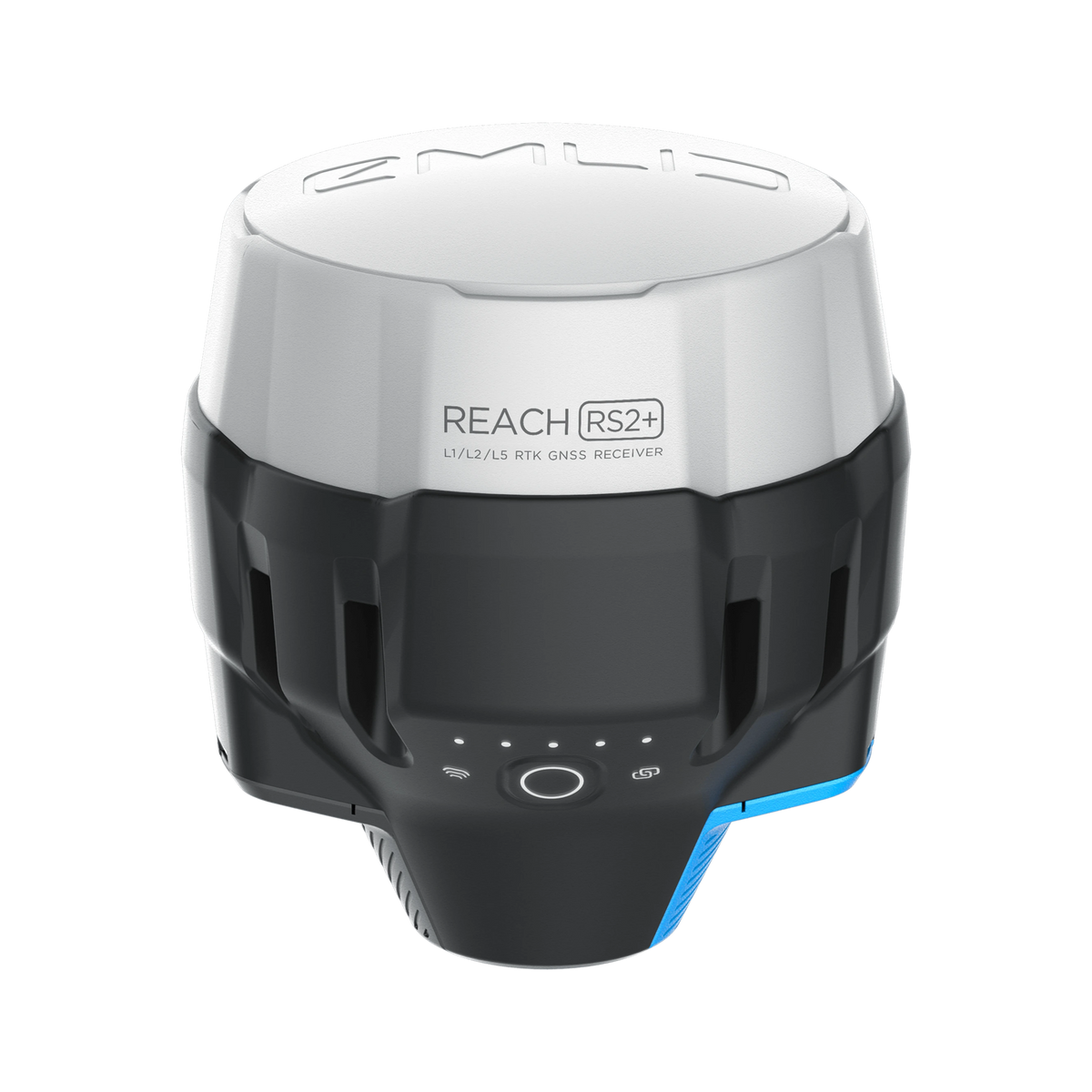

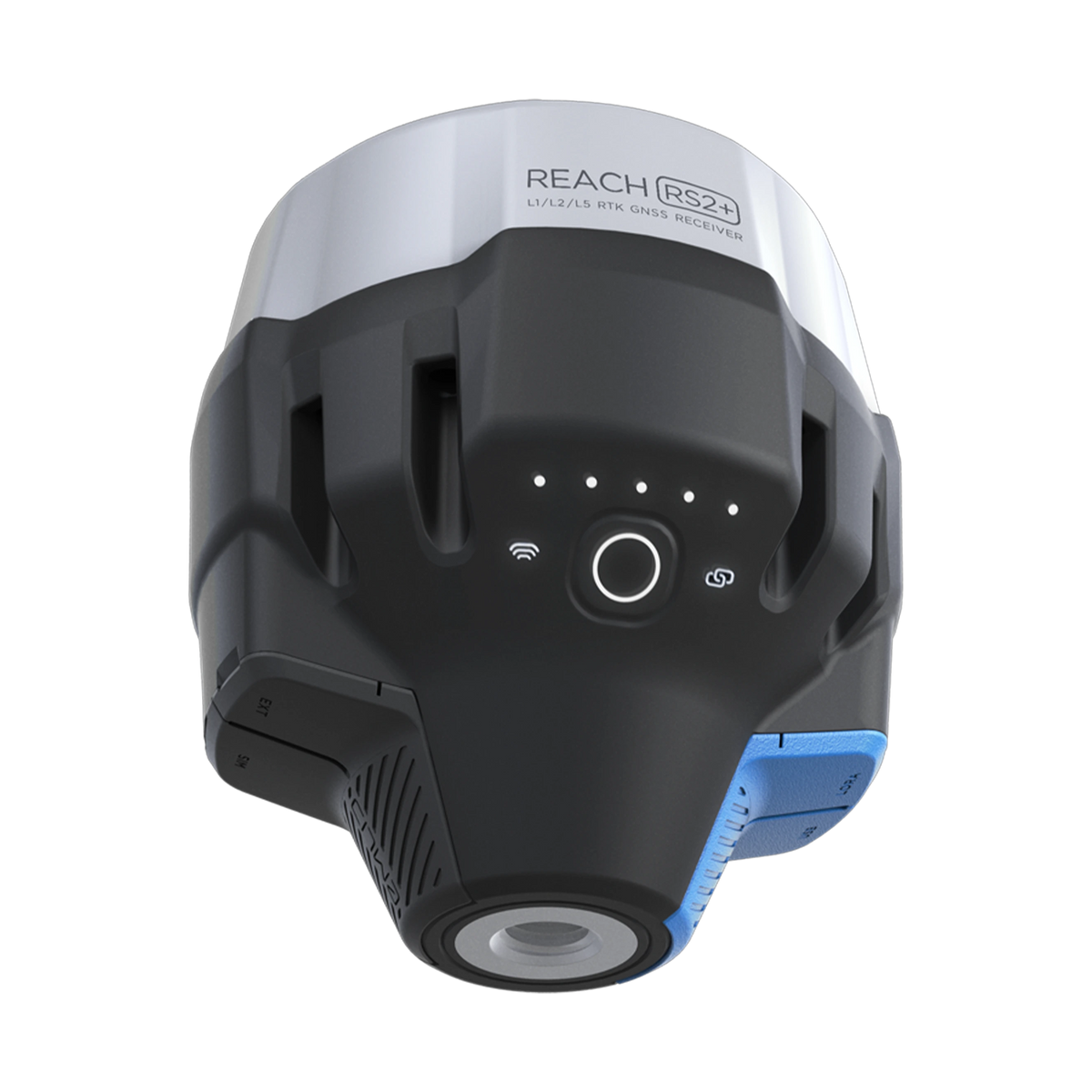

Reach RS2

$1899.00

Multi-band RTK GNSS receiver with centimeter precision

For surveying, mapping and navigation. Comes with a mobile app.

GNSS

GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5

Long range radio

LoRa 868/915 MHz, range up to 8 km

16 hrs as 3.5G RTK rover

LiFePO4 battery, 6–40V input, USB charging

Wi-Fi and Bluetooth

For connection with other devices

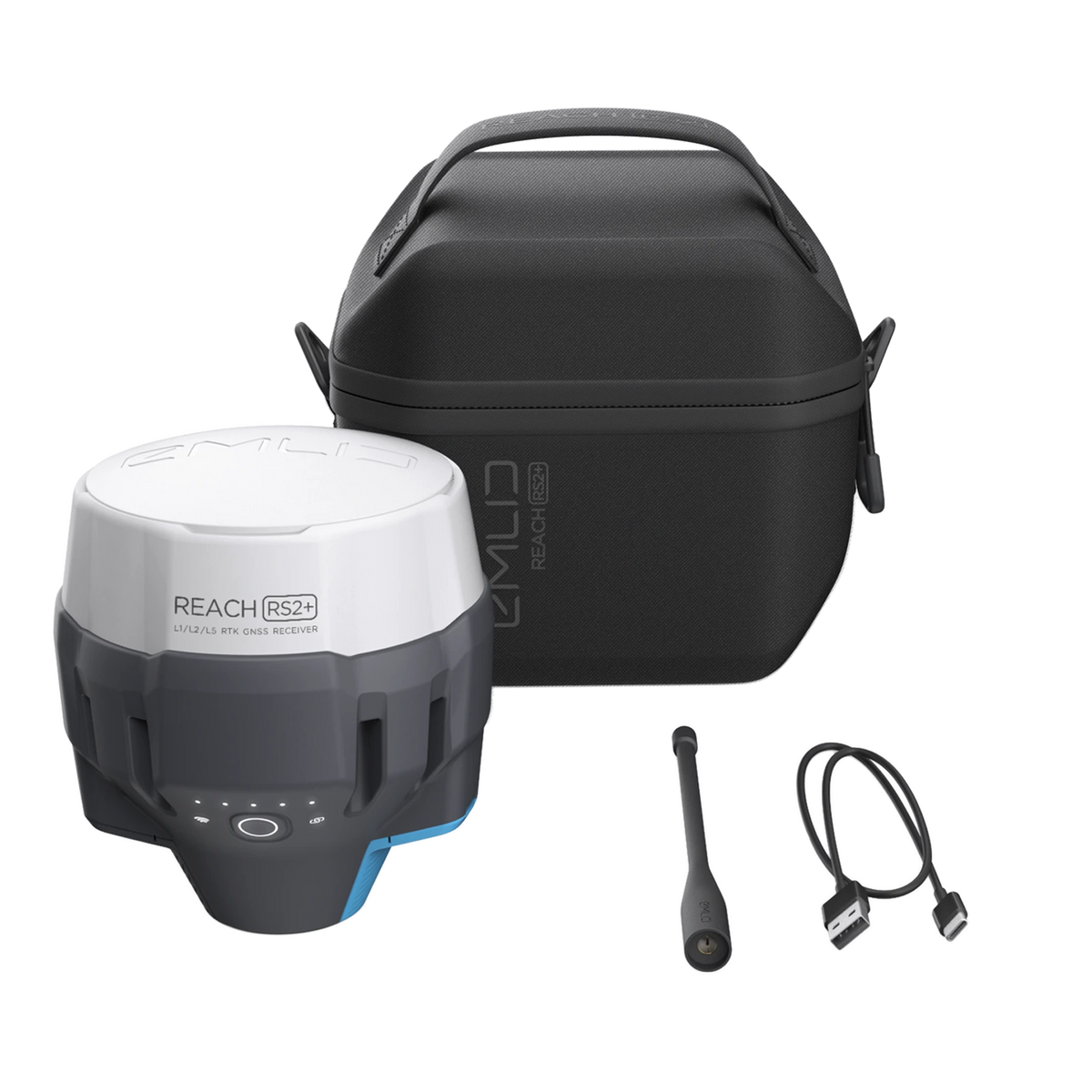

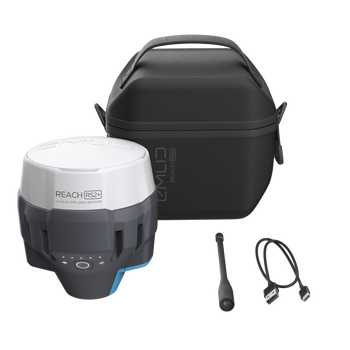

Package includes

— Reach RS2
— Carry case with a strap
— Radio antenna
— USB Type-C cable

Two receivers are required for centimeter precision

Single Reach RS2 can provide centimeter accuracy as well, but it needs NTRIP connection. For better understanding of RTK, PPK and NTRIP check the article on how these technologies work.

In stock

Shipping from Hong Kong

Mechanical

  • Dimensions 126x126x142 mm
  • Weight 950 g
  • Operating tº: -20…+65º C
  • Ingress protection IP67

Electrical

  • Autonomy 16 hrs as 3.5G RTK rover,
    22 hrs logging
  • Battery LiFePO4 6400 mAh, 6.4 V
  • External power input 6–40 V
  • Charging USB Type-C 5 V, 2 A
  • Certification FCC, CE

Positioning

  • Static H: 4 mm + 0.5 ppm
    V: 8 mm + 1 ppm
  • PPK H: 5 mm + 0.5 ppm
    V: 10 mm + 1 ppm
  • RTK H: 7 mm + 1 ppm
    V: 14 mm + 1 ppm
  • Convergence time ~5 s typically

Connectivity

  • LoRa radio
    Frequency range 868/915 MHz
    Power 0.1 W
    Distance Up to 8 km
  • 3.5G modem
    Regions Global
    Bands Quad-band, 850/1900,
    900/1800 MHz


    SIM card Nano-SIM
  • Wi-Fi 802.11b/g/n
  • Bluetooth 4.0/2.1 EDR

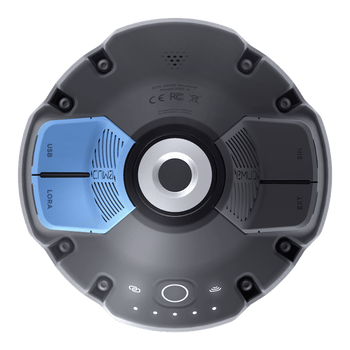

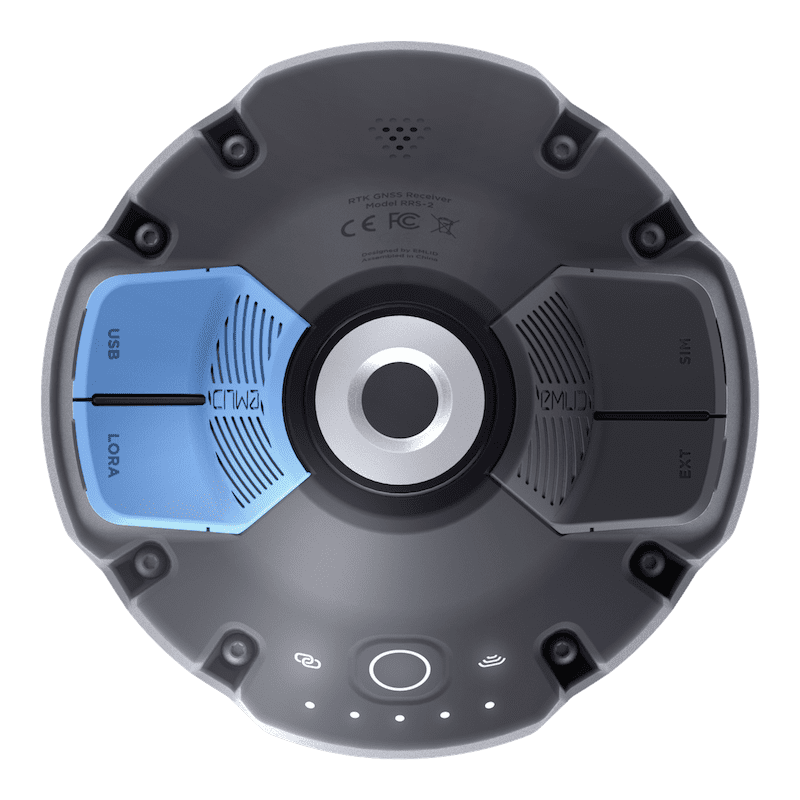

  • Ports RS-232, USB Type-C

Data

  • Corrections NTRIP, RTCM3
  • Position output NMEA, LLH/XYZ
  • Data logging RINEX with events
    with update rate up to 20 Hz
  • Internal storage 16 GB
    160+ days of logging
    at 1 Hz

GNSS

  • Signals tracked GPS/QZSS L1C/A, L2C
    GLONASS L1OF, L2OF
    BeiDou B1I, B2I
    Galileo E1-B/C, E5b
  • Number of channels 184
  • Update rates 10 Hz GPS / 5 Hz GNSS
  • IMU 9DOF
Weight 2 kg
Dimensions 20 × 20 × 28 cm
